ERZ-LNA-1600-4000-28-6

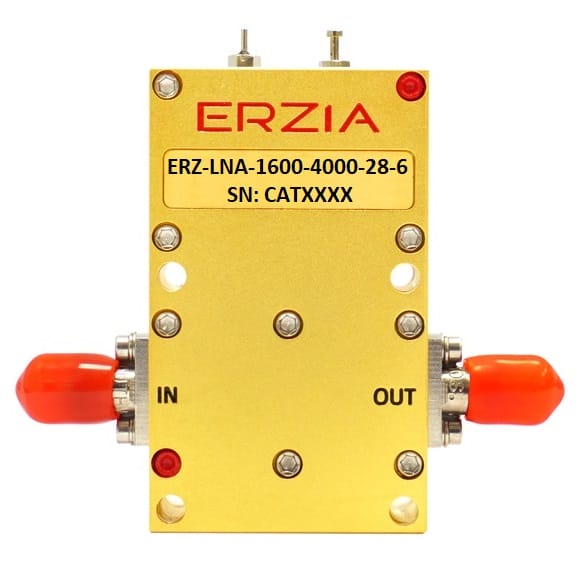

Wideband Low Noise Amplifier
Description
The ERZ-LNA-1600-4000-28-6 is a Low Noise Amplifier providing a gain of 33 dB with a noise figure of 4.5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 16.00-40.00
- Output Power (dBm): 24
- Small Signal Gain (dB): 33
- Noise Figure (dB): 4.5
- Bias: 15 ±2 VDC
- Package Dimensions: 30x51.4x12.5 mm
- Connectors: 2.92 mm Female
Specifications
| Frequency Start (GHz): | 16.00 |
| Frequency Stop (GHz): | 40.00 |
| Output Power (dBm): | 24 |
| Gain (dB): | 33.00 |
| Gain flatness (dB): | ±2.5 |
| Noise Figure (dB): | 4.5 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.5:1 |
| Power supply (V): | 15±2 |
| Current (mA): | 300 |
| Power consumption (W): | 4.5 |
| Temperature (operation) (°C): | -40 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

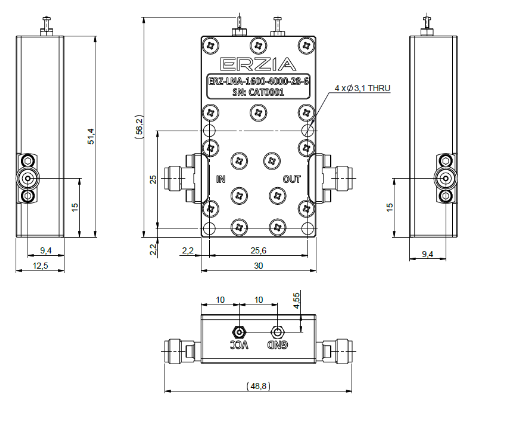

Outline Drawing
Ordering Information
