ERZ-LNA-1250-1700-33-3

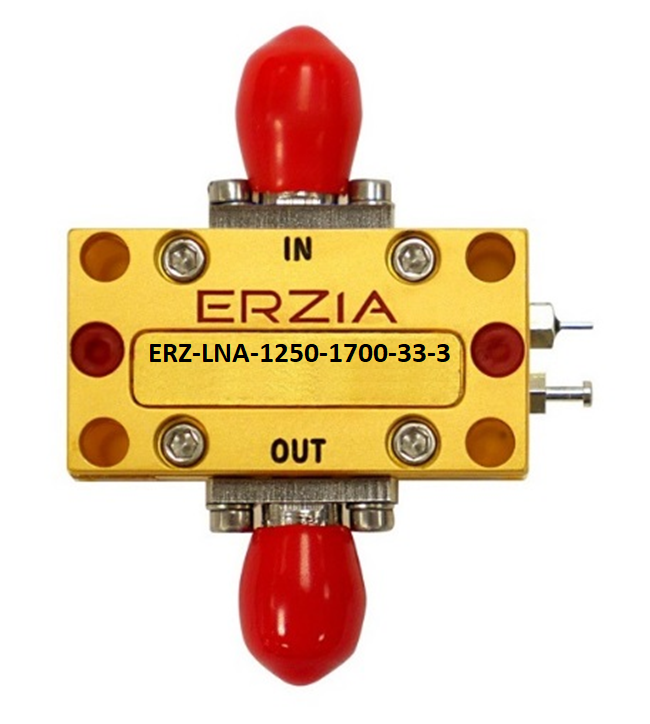

ERZ-LNA-1250-1700-33-3 Ku Band LNA

Login to see price Get a quote

Ku Band Low Noise Amplifier

Description

The ERZ-LNA-1250-1700-33-3 is a Low Noise Amplifier that provides a Noise Figure of 3 dB with a Gain of 33 dB

Download

PDF IconERZ-LNA-1250-1700-33-3_0

Key Features

  • Frequency Range (GHz): 12.50-17.00
  • Output Power (dBm): 13
  • Small Signal Gain (dB): 33
  • Noise Figure (dB): 3
  • Bias: Power supply: 12 V
  • Package Dimensions: 16x30x17,5 mm

Specifications

Frequency Start (GHz): 12.50
Frequency Stop (GHz): 17.00
Output Power (dBm): 13
Gain (dB): 33.00
Gain flatness (dB): ±1
Noise Figure (dB): 3
VSWR IN: 2.0:1
VSWR OUT: 2.0:1
Power supply (V): 12 ±4
Current (mA): 50
Power consumption (W): 0.6
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

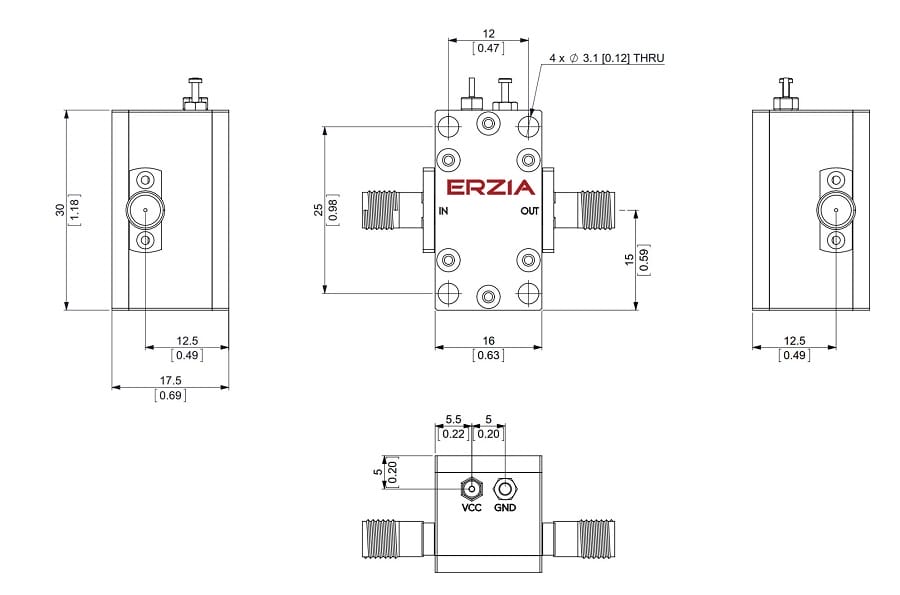

Outline Drawing

Ordering Information
