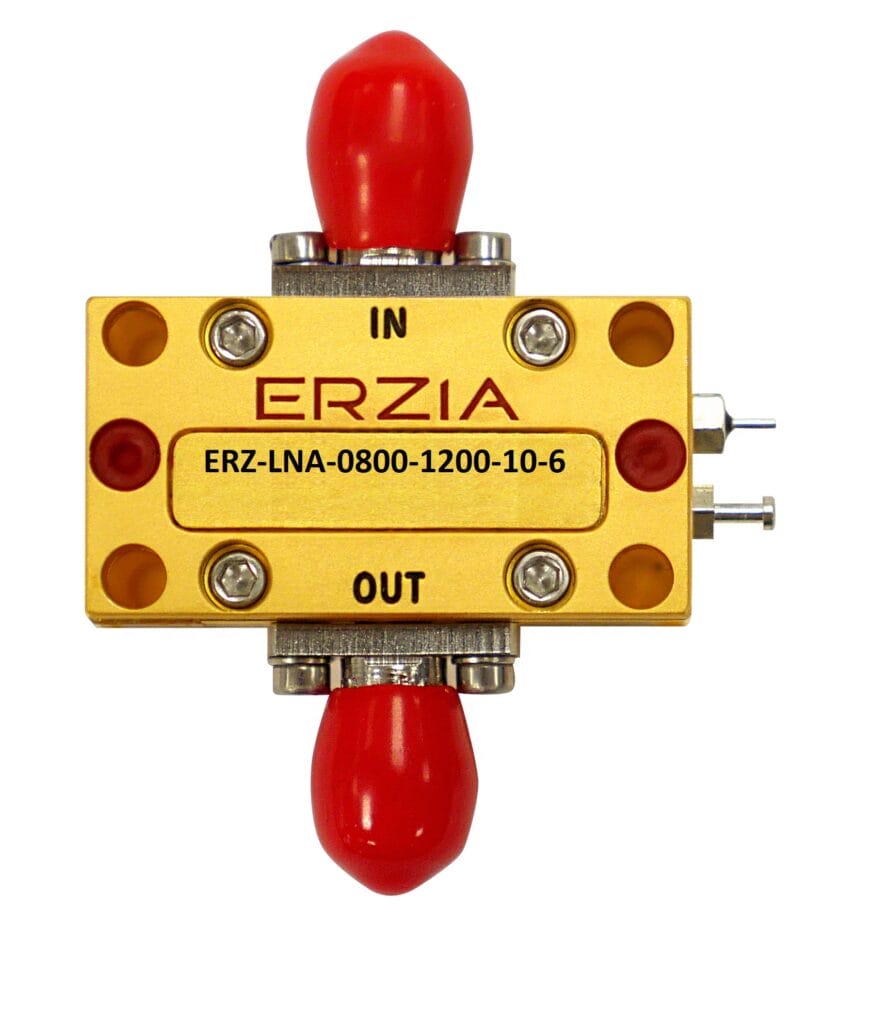

ERZ-LNA-0800-1200-10-6 X Band LNA

Login to see price Get a quote

X Band Low Noise Amplifier

Description

The ERZ-LNA-0800-1200-10-6 is a low noise amplifier providing a gain of 10 dB with a noise figure of 6 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0800-1200-10-6_0

Key Features

  • Frequency Range (GHz): 8.00-12.00
  • Output Power (dBm): 21
  • Small Signal Gain (dB): 11
  • Noise Figure (dB): 6
  • Bias: 15±2 VDC
  • Package Dimensions: 13x30x17.5mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 8.00
Frequency Stop (GHz): 12.00
Output Power (dBm): 21
Gain (dB): 11.00
Gain flatness (dB): ±0.5
Noise Figure (dB): 6
VSWR IN: 1.3:1
VSWR OUT: 1.3:1
Power supply (V): 15±2
Current (mA): 125
Power consumption (W): 1.5
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

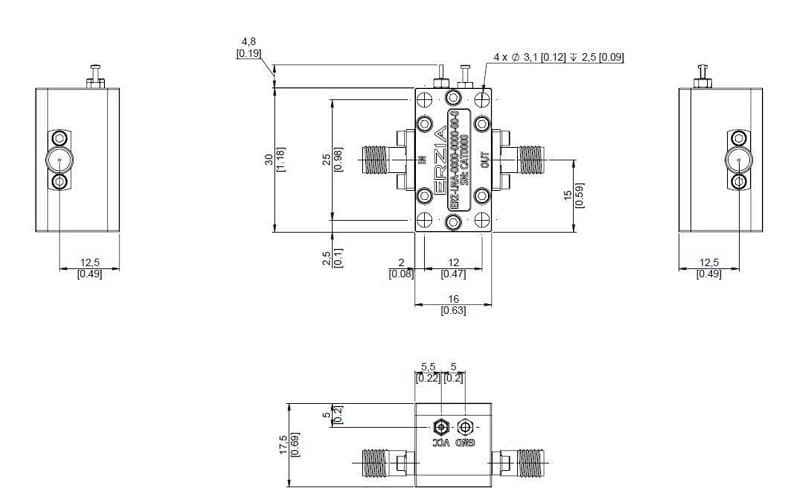

Outline Drawing
