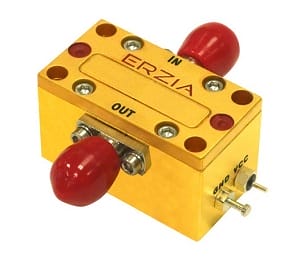

ERZ-LNA-0340-0470-23-2 C Band LNA

Login to see price Get a quote

C Band Low Noise Amplifier

Description

The ERZ-LNA-0340-0470-23-2 is a Low Noise Amplifier providing a low noise figure of 1.5 dB and a gain of 25 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0340-0470-23-2_0

Key Features

  • Frequency Range (GHz): 3.40-4.70
  • Output Power (dBm): 12
  • Small Signal Gain (dB): 25
  • Noise Figure (dB): 1.5
  • Bias: Power supply: 12 V
  • Package Dimensions: 30x30x17,5 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 3.40
Frequency Stop (GHz): 4.70
Output Power (dBm): 12
Gain (dB): 25.00
Gain flatness (dB): ±1
Noise Figure (dB): 1.5
VSWR IN: 2.0:1
VSWR OUT: 2.0:1
Power supply (V): 12 ±4
Current (mA): 83
Power consumption (W): 1
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing

Ordering Information
