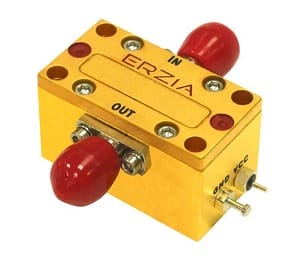

ERZ-LNA-0200-5000-22-6 Wideband LNA

Login to see price Get a quote

Wideband Low Noise Amplifier

Description

The ERZ-LNA-0200-5000-22-6 is a Low Noise Amplifier providing a gain of 22 dB with a noise figure of 5 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0200-5000-22-6_2

Key Features

  • Frequency Range (GHz): 2.00-50.00
  • Output Power (dBm): 8
  • Small Signal Gain (dB): 22
  • Noise Figure (dB): 5
  • Bias: Power Supply VDC 12 ±3 V
  • Package Dimensions: 16x30x17.5 mm (LxWxH)
  • Connectors: 2.4mm Female

Specifications

Frequency Start (GHz): 2.00
Frequency Stop (GHz): 50.00
Output Power (dBm): 8
Gain (dB): 22.00
Gain flatness (dB): ±6.5
Noise Figure (dB): 5
VSWR IN: 2.0:1
VSWR OUT: 1.8:1
Power supply (V): 12±3
Current (mA): 100
Power consumption (W): 1
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

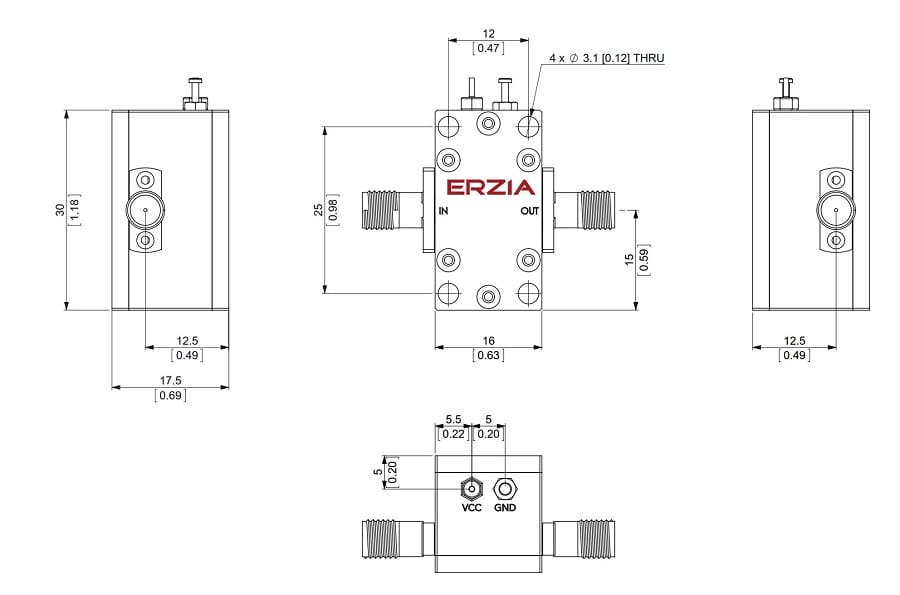

Outline Drawing

Ordering Information
