Wideband Low Noise Amplifier | 2–33 GHz | NF 4 dB | 30 dB Gain

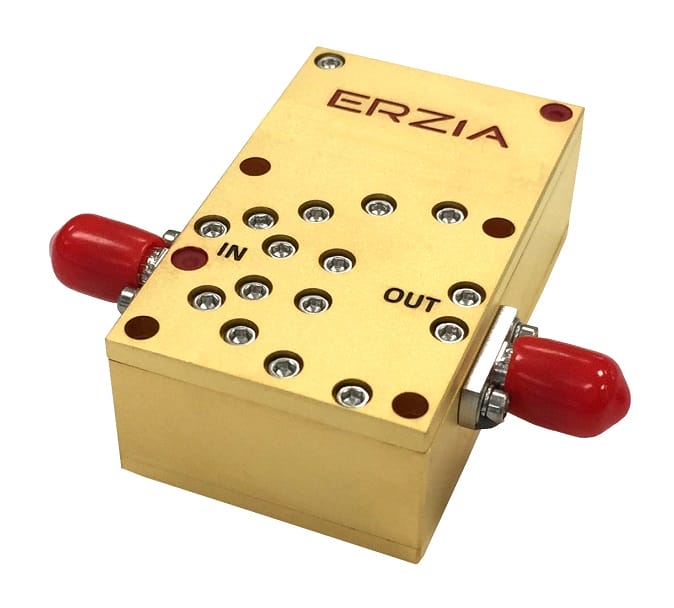

ERZ-LNA-0200-3300-30-4 Wideband LNA

Login to see price Get a quote

Description

The ERZ-LNA-0200-3300-30-4 is a Low Noise Amplifier covering from S band to Ka Band and being able to provide Low Noise Figure within a wide frequency range and a gain of 30dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0200-3300-30-4_R1.6

Key Features

  • Frequency Range (GHz): 2-33
  • Output Power (dBm): 16
  • Small Signal Gain (dB): 30
  • Noise Figure (dB): 4
  • Bias: 12 V
  • Package Dimensions: 30x50x17.5 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 2
Frequency Stop (GHz): 33
Output Power (dBm): 16
Gain (dB): 30
Gain flatness (dB): ±2.5
Noise Figure (dB): 4
VSWR IN: 1.8:1
VSWR OUT: 1.5:1
Power supply (V): 12 ±3
Current (mA): 250
Power consumption (W): 3
Temperature (operation) (°C): -40 to 80
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

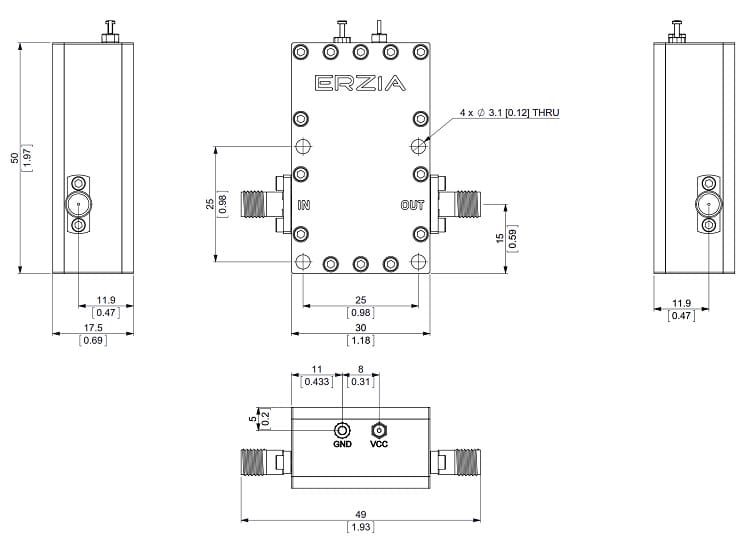

Outline Drawing

Ordering Information
