ERZ-LNA-0125-0175-27-2

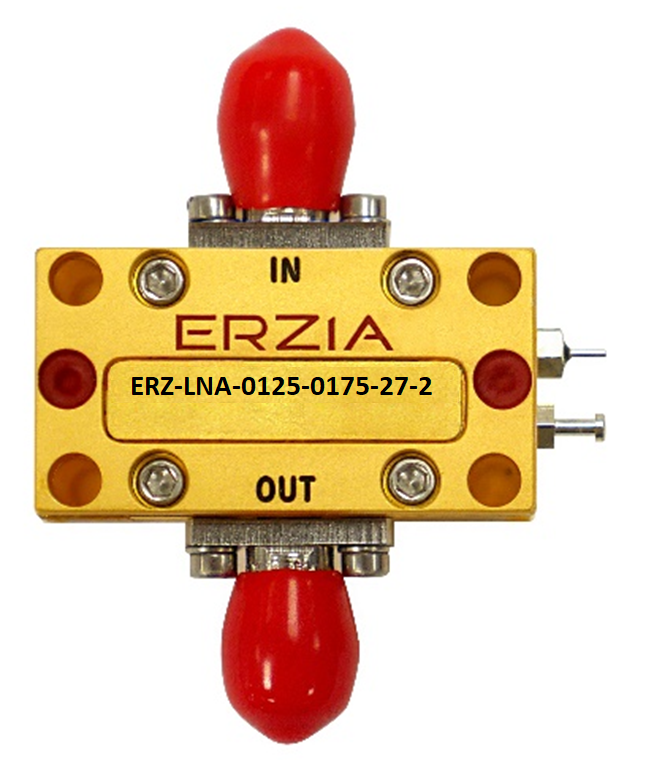

ERZ-LNA-0125-0175-27-2 L Band LNA

Login to see price Get a quote

L Band Low Noise Amplifier

Description

The ERZ-LNA-0125-0175-27-2 is a Low Noise Amplifier that provides a Noise Figure below2 dB with a Gain of 27 dB

Download

PDF IconERZ-LNA-0125-0175-27-2_0

Key Features

  • Frequency Range (GHz): 1.25-1.75
  • Output Power (dBm): 15
  • Small Signal Gain (dB): 27
  • Noise Figure (dB): 2
  • Bias: Power supply: 12 V
  • Package Dimensions: 16x30x17,5 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 1.25
Frequency Stop (GHz): 1.75
Output Power (dBm): 15
Gain (dB): 27.00
Gain flatness (dB): ±0,5
Noise Figure (dB): 2
VSWR IN: 1.5:1
VSWR OUT: 1.5:1
Power supply (V): 12 ±3
Current (mA): 60
Power consumption (W): 0.7
Temperature (operation) (°C): -45 to 75
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

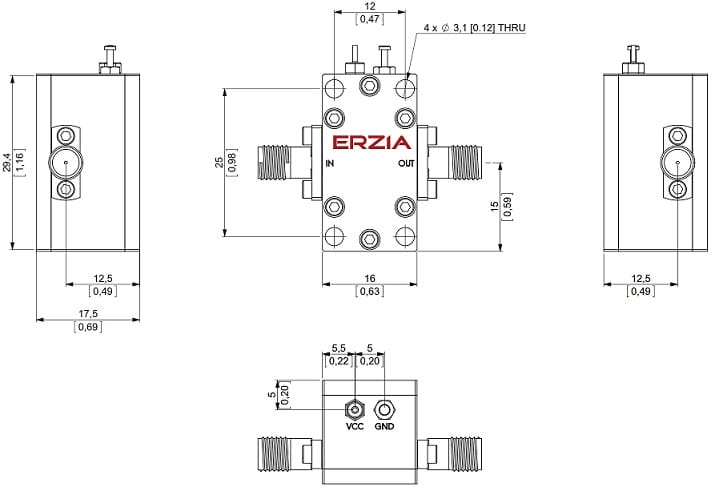

Outline Drawing

Ordering Information
