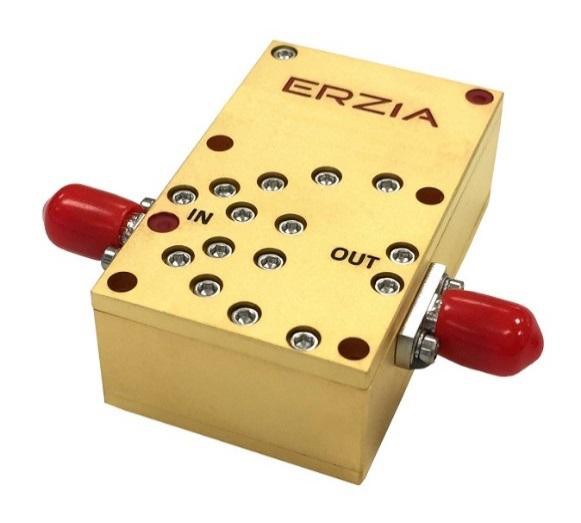

ERZ-LNA-0100-0310-32-0.9
L Band Low Noise Amplifier | 1–3.1 GHz | NF 0.9 dB | 32 dB Gain

ERZ-LNA-0100-0310-32-0.9

Login to see price Get a quote

Description

The ERZ-LNA-0100-0310-32-0.9 is a Low Noise Amplifier providing a gain of 32 dB and a noise figure of 0.9 dB over 1 to 3.1 GHz. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0100-0310-32-0.9_R1.1

Key Features

  • Frequency Range (GHz): 1-3.1
  • Output Power (dBm): 19
  • Small Signal Gain (dB): 32
  • Noise Figure (dB): 0.9
  • Bias: 12V
  • Package Dimensions: 30x50x17,5 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 1
Frequency Stop (GHz): 3.1
Output Power (dBm): 19
Gain (dB): 32
Gain flatness (dB): ±1
Noise Figure (dB): 0.9
VSWR IN: 1.5:1
VSWR OUT: 1.4:1
Power supply (V): 12
Power consumption (W): 2
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

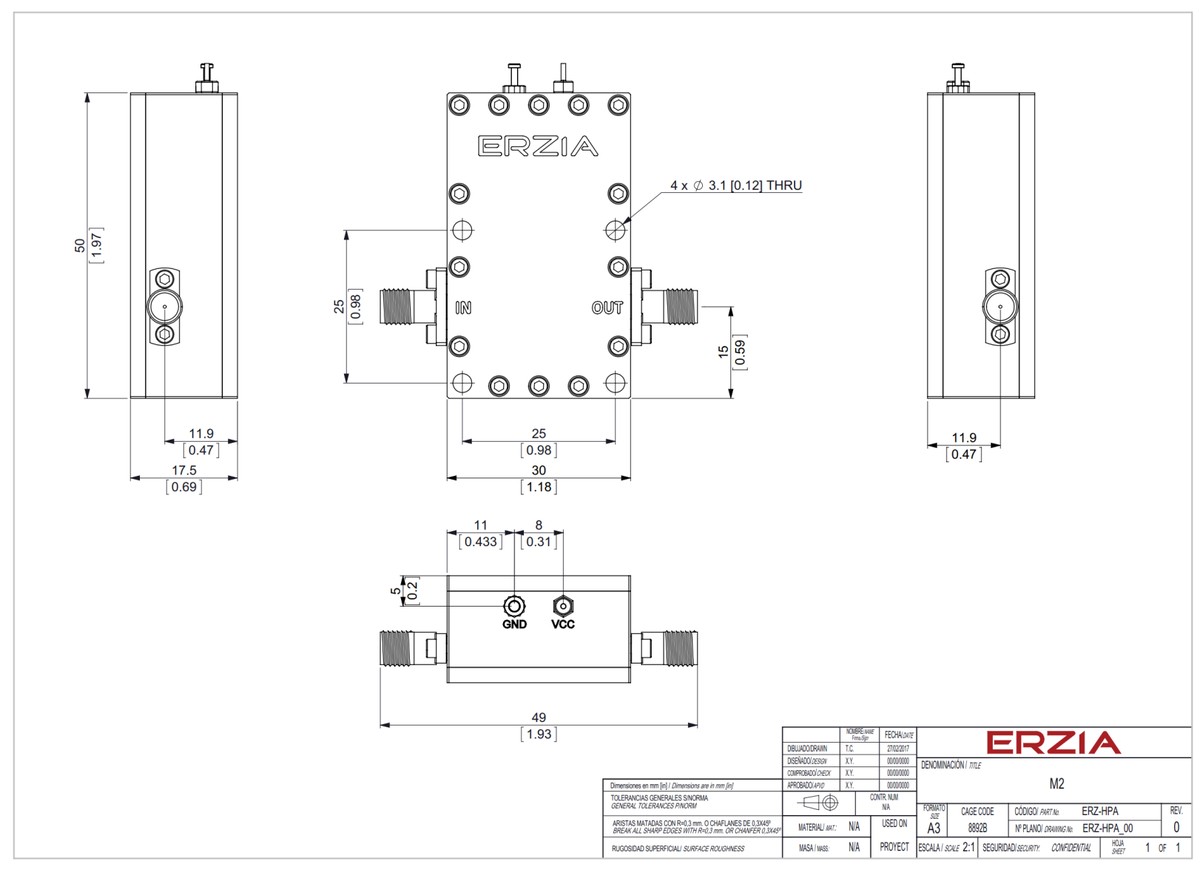

Outline Drawing

Ordering Information
