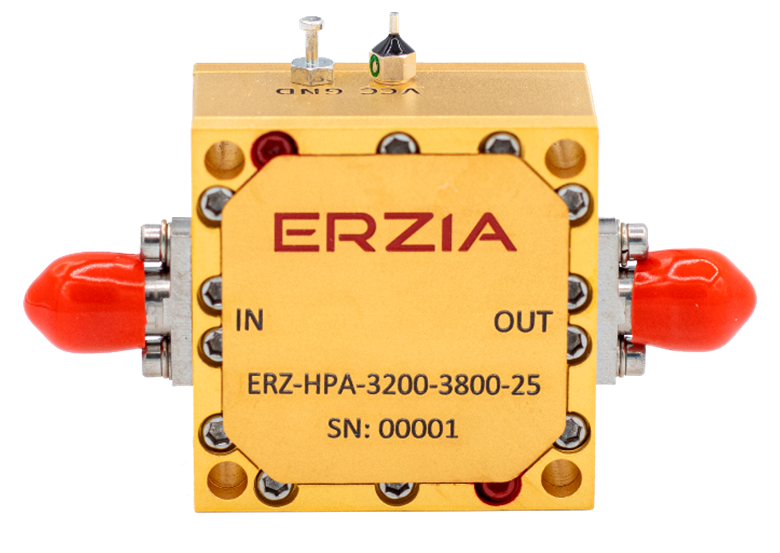

ERZ-HPA-3200-3800-25
Ka Band High Power Amplifier
Description
The ERZ-HPA-3200-3800-25 is a Ka Band High Power Amplifier providing and output power of 24 dBm and a gain of 33 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 32.00-38.00
- Output Power (dBm): 24
- Small Signal Gain (dB): 33
- Noise Figure (dB): 4
- Bias: Power supply: 12V
- Package Dimensions: 30x30x17.5 mm
- Connectors: 2.92 mm Female
Specifications
| Frequency Start (GHz): | 32.00 |
| Frequency Stop (GHz): | 38.00 |
| Output Power (dBm): | 24 |
| Gain (dB): | 33.00 |
| Gain flatness (dB): | ±1 |
| Noise Figure (dB): | 4 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.8:1 |
| Power supply (V): | 12 ±3 |
| Current (mA): | 333 |
| Power consumption (W): | 4 |
| Temperature (operation) (°C): | -40 to 70 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

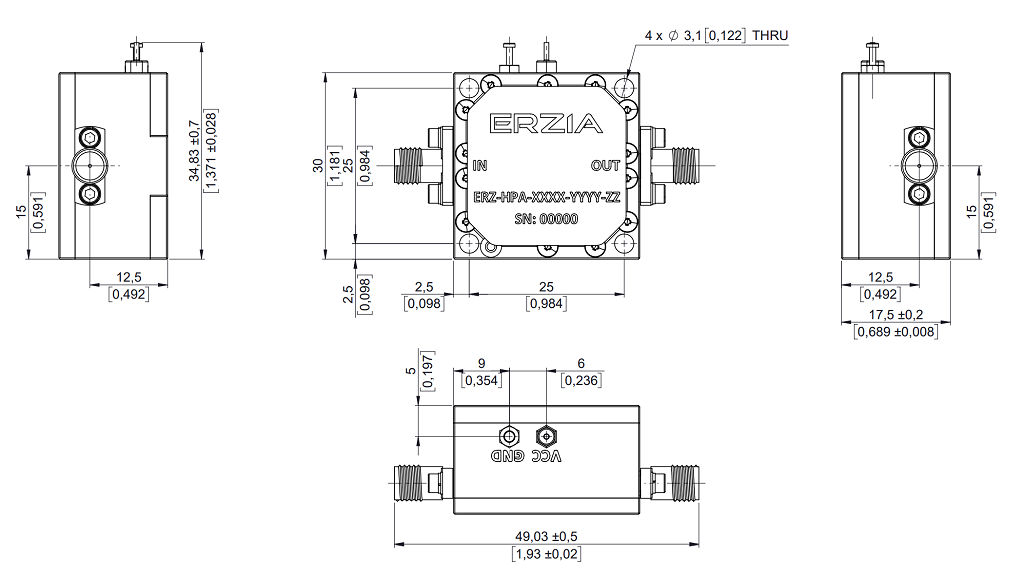

Outline Drawing
Ordering Information
