ERZ-HPA-3000-3100-46

Ka Band High Power Amplifier

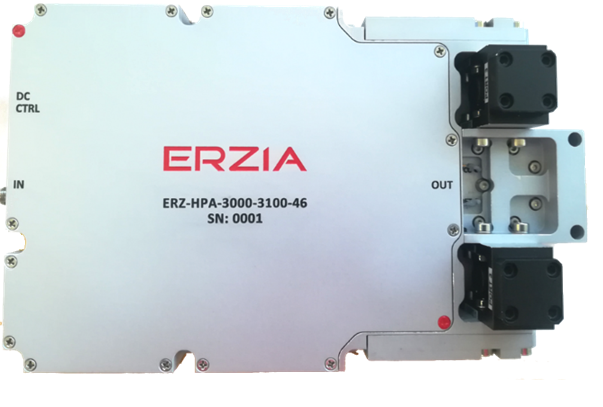

ERZ-HPA-3000-3100-46 Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-3000-3100-46 is a High Power Amplifier providing an output power of 44 dBm and a gain of 47 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-3000-31000-46_0

Key Features

  • Frequency Range (GHz): 30.00-31.00
  • Output Power (dBm): 44
  • Small Signal Gain (dB): 47
  • Bias: 24 VDC
  • Package Dimensions: 195x120x25(41.6) mm
  • Connectors: 2.92 mm Female (IN) / WR28 (OUT)

Specifications

Frequency Start (GHz): 30.00
Frequency Stop (GHz): 31.00
Output Power (dBm): 44
Gain (dB): 47.00
Gain flatness (dB): ±1.5
VSWR IN: 1.2:1
VSWR OUT: 1.5:1
Power supply (V): 24
Current (mA): 8750
Power consumption (W): 210
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing

Ordering Information
