ERZ-HPA-2800-3300-33

Ka Band High Power Amplifier

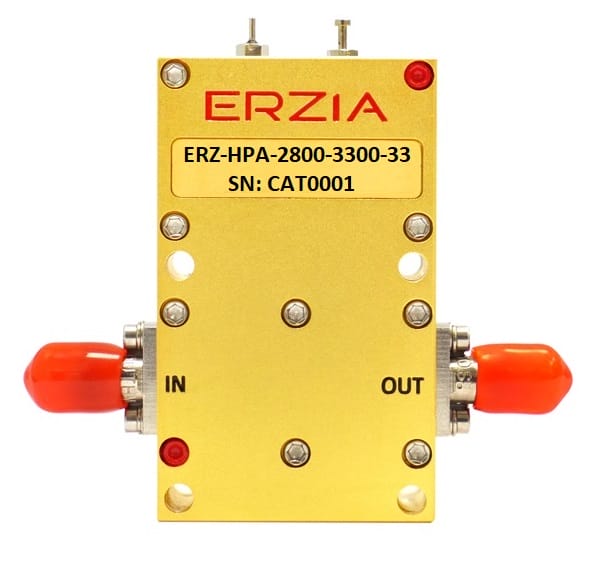

ERZ-HPA-2800-3300-33 Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-2800-3300-33 is a Ka Band Amplifier providing an ouput power of 33 dBm a gain of 21 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-2800-3300-33_2

Key Features

  • Frequency Range (GHz): 28.00-33.00
  • Output Power (dBm): 33
  • Small Signal Gain (dB): 21
  • Bias: Power supply: 12 ±3 V
  • Package Dimensions: 30x50x17,5 mm
  • Connectors: 2.92 Female

Specifications

Frequency Start (GHz): 28.00
Frequency Stop (GHz): 33.00
Output Power (dBm): 33
Gain (dB): 21.00
Gain flatness (dB): ±4.5
VSWR IN: 2.0:1
VSWR OUT: 2.5:1
Power supply (V): 12 ±3
Current (mA): 2166
Power consumption (W): 26
Temperature (operation) (°C): -35 to 70
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

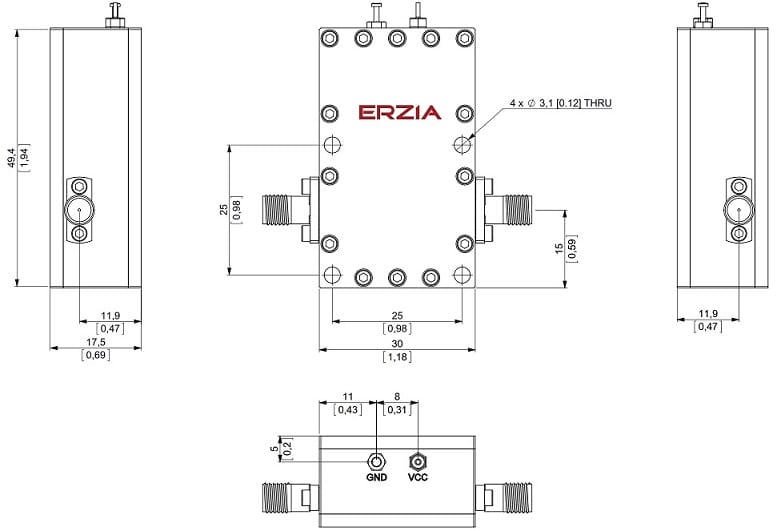

Outline Drawing
