ERZ-HPA-2700-4200-27

Ka Band High Power Amplifier

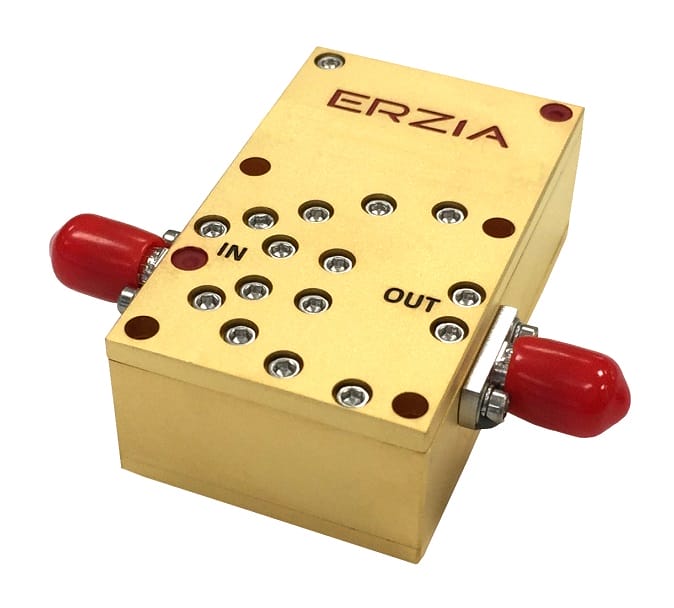

ERZ-HPA-2700-4200-27 Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-2700-4200-27 is a Ka Band Amplifier providing up to 27 dBm and a gain of 35 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-2700-4200-27_1

Key Features

  • Frequency Range (GHz): 27.00-42.00
  • Output Power (dBm): 27
  • Small Signal Gain (dB): 35
  • Bias: Power supply: +12 ±4 V, DC Current: 550 mA
  • Package Dimensions: 30x50x17,5 mm
  • Connectors: 2.4 mm Female

Specifications

Frequency Start (GHz): 27.00
Frequency Stop (GHz): 42.00
Output Power (dBm): 27
Gain (dB): 35.00
Gain flatness (dB): ±2
VSWR IN: 2.0:1
VSWR OUT: 2.0:1
Power supply (V): 12 ±4
Current (mA): 583
Power consumption (W): 7
Temperature (operation) (°C): -35 to 70
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing

Ordering Information
