ERZ-HPA-2600-4000-33
Ka Band High Power Amplifier
Description
The ERZ-HPA-2600-4000-33 is a High Power Amplifier covering the full Ka band and providing an output power of 33 dBm and gain of 35 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 26.00-40.00
- Output Power (dBm): 33
- Small Signal Gain (dB): 35
- Noise Figure (dB): 7
- Bias: Power supply: +12 ±3 V, DC Current: 2500 mA
- Package Dimensions: 30x50x17.5 mm
- Connectors: 2.92 mm Female
Specifications
| Frequency Start (GHz): | 26.00 |
| Frequency Stop (GHz): | 40.00 |
| Output Power (dBm): | 33 |
| Gain (dB): | 35.00 |
| Gain flatness (dB): | ±5 |
| Noise Figure (dB): | 7 |
| VSWR IN: | 1.8:1 |
| VSWR OUT: | 1.8:1 |
| Power supply (V): | 12±3 |
| Current (mA): | 2500 |
| Power consumption (W): | 30 |
| Temperature (operation) (°C): | -45 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

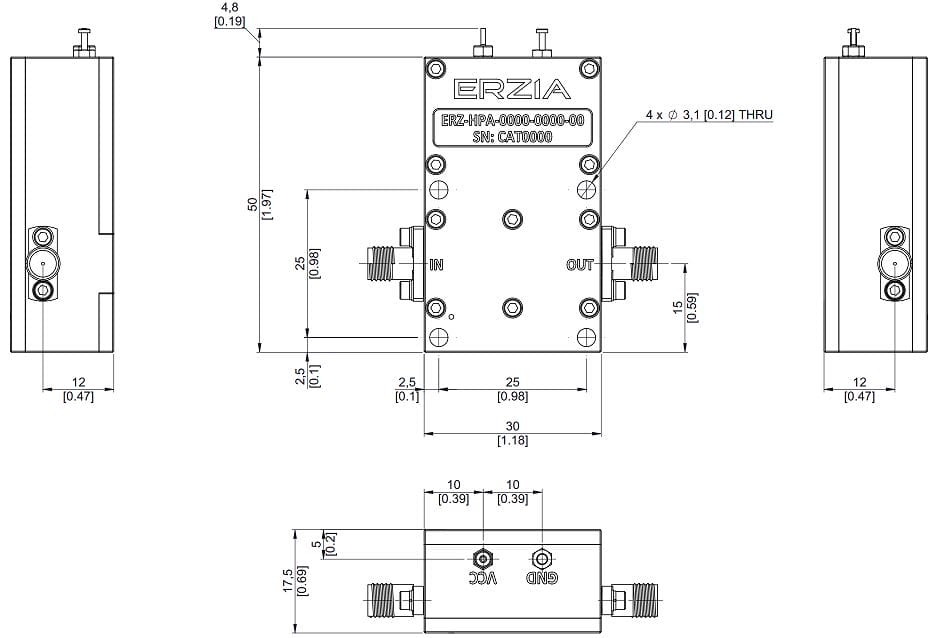

Outline Drawing
