ERZ-HPA-2400-3600-27

Ka Band High Power Amplifier

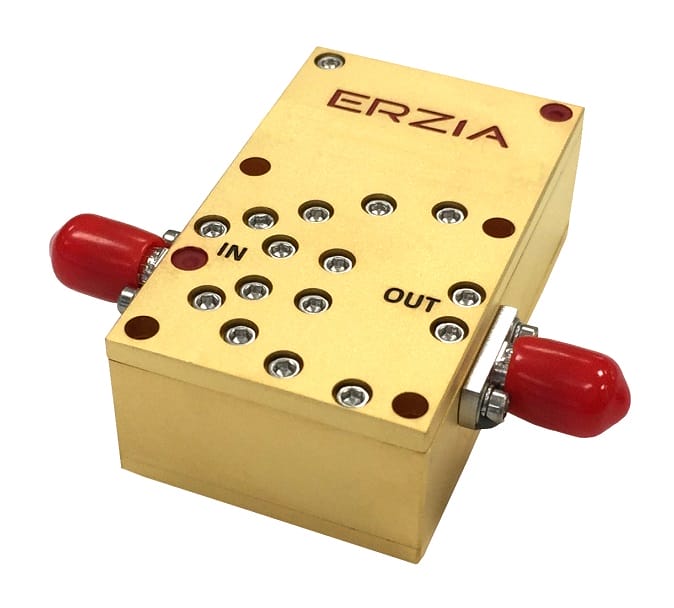

ERZ-HPA-2400-3600-27 Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-2400-3600-27 is a Ka Band Amplifier providing up to 27 dBm and a gain of 35 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-2400-3600-27_1

Key Features

  • Frequency Range (GHz): 24.00-36.00
  • Output Power (dBm): 27
  • Small Signal Gain (dB): 35
  • Noise Figure (dB): 6.5
  • Bias: Power supply: 12 V, DC Current: 512 mA
  • Package Dimensions: 30x50x17.5 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 24.00
Frequency Stop (GHz): 36.00
Output Power (dBm): 27
Gain (dB): 35.00
Gain flatness (dB): ±3
Noise Figure (dB): 6.5
VSWR IN: 1.6:1
VSWR OUT: 1.7:1
Power supply (V): 12 ±4
Current (mA): 512
Power consumption (W): 6.2
Temperature (operation) (°C): -35 to 70
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

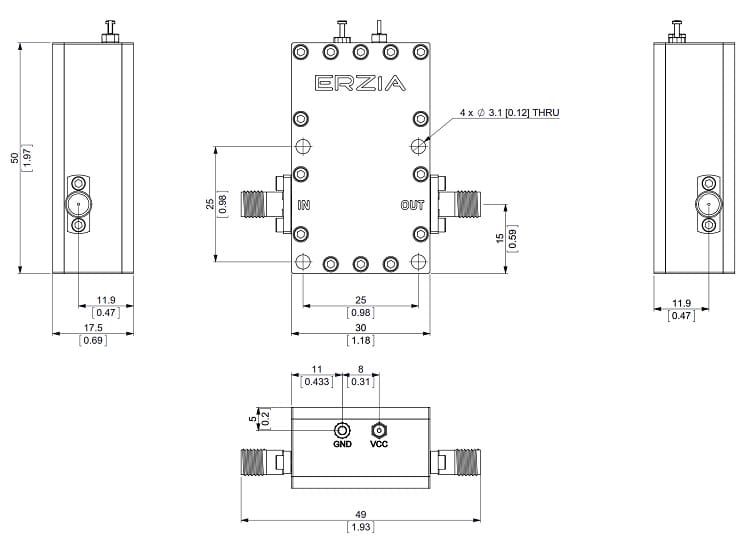

Outline Drawing

Ordering Information
