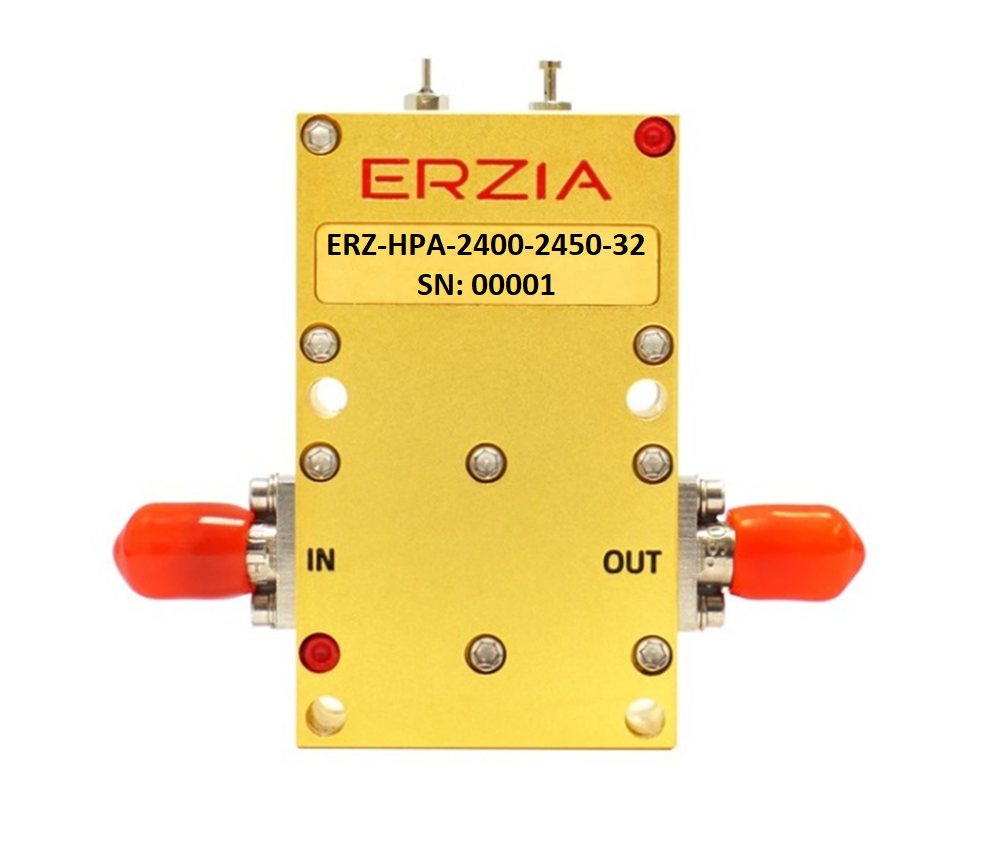

ERZ-HPA-2400-2450-32
K Band High Power Amplifier
Description
The ERZ-HPA-2400-2450-32 is a Ka Band High Power Amplifier providing an output power of 33 dBm and gain of 35 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 24.00-24.50
- Output Power (dBm): 33
- Small Signal Gain (dB): 35
- Bias: 12 ±4 VDC
- Package Dimensions: 30x50x17.5 mm
- Connectors: 2.92 mm Female
Specifications
| Frequency Start (GHz): | 24.00 |
| Frequency Stop (GHz): | 24.50 |
| Output Power (dBm): | 33 |
| Gain (dB): | 35.00 |
| Gain flatness (dB): | ±0.6 |
| VSWR IN: | 1.2:1 |
| VSWR OUT: | 1.3:1 |
| Power supply (V): | 12 ±4 |
| Current (mA): | 1041 |
| Power consumption (W): | 12.5 |
| Temperature (operation) (°C): | -40 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

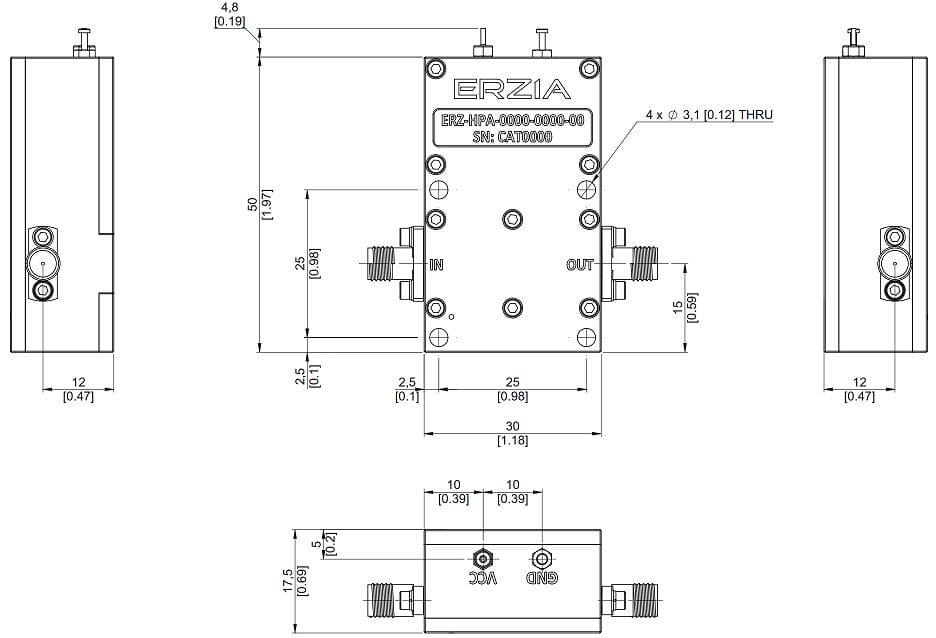

Outline Drawing
