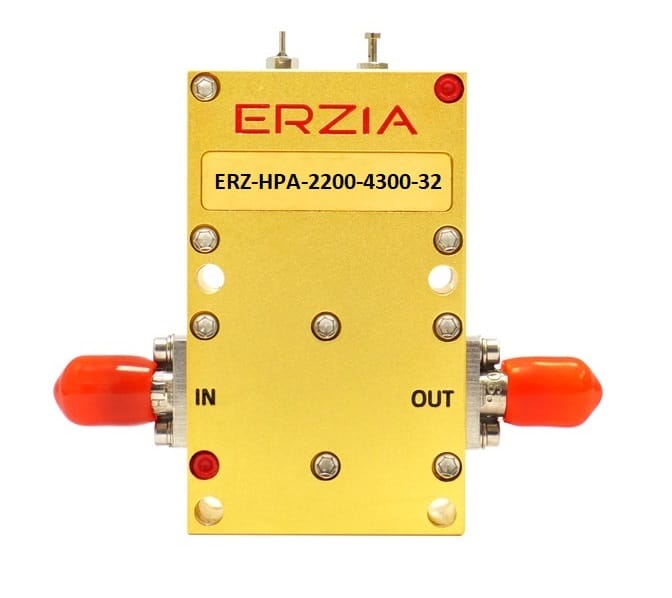

ERZ-HPA-2200-4300-32
Wideband High Power Amplifier
Description
The ERZ-HPA-2200-4300-32 is a Wideband Amplifier providing up to 32 dBm and a gain of 35 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 22.00-43.00
- Output Power (dBm): 32
- Small Signal Gain (dB): 35
- Noise Figure (dB): 6
- Bias: 12±3
- Package Dimensions: 30x50x17,5 mm
- Connectors: 2.92 mm (F)
Specifications
| Frequency Start (GHz): | 22.00 |
| Frequency Stop (GHz): | 43.00 |
| Output Power (dBm): | 32 |
| Gain (dB): | 35.00 |
| Gain flatness (dB): | 2.5 |
| Noise Figure (dB): | 6 |
| VSWR IN: | 2.0:1 |
| VSWR OUT: | 2.0:1 |
| Power supply (V): | 12±3 |
| Current (mA): | 1.08A |
| Power consumption (W): | 13 |
| Temperature (operation) (°C): | -45 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

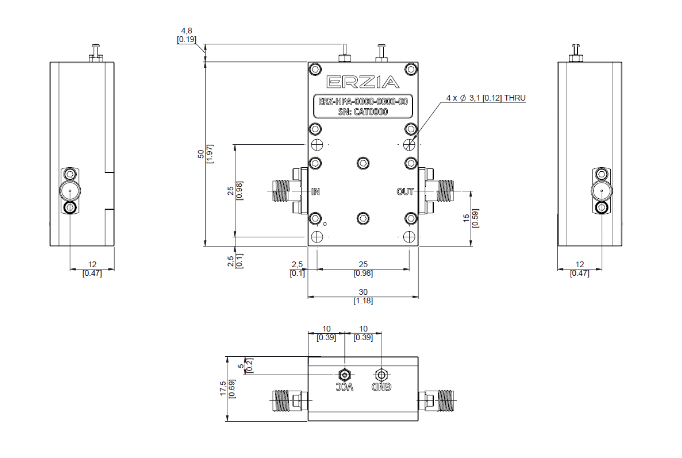

Outline Drawing
