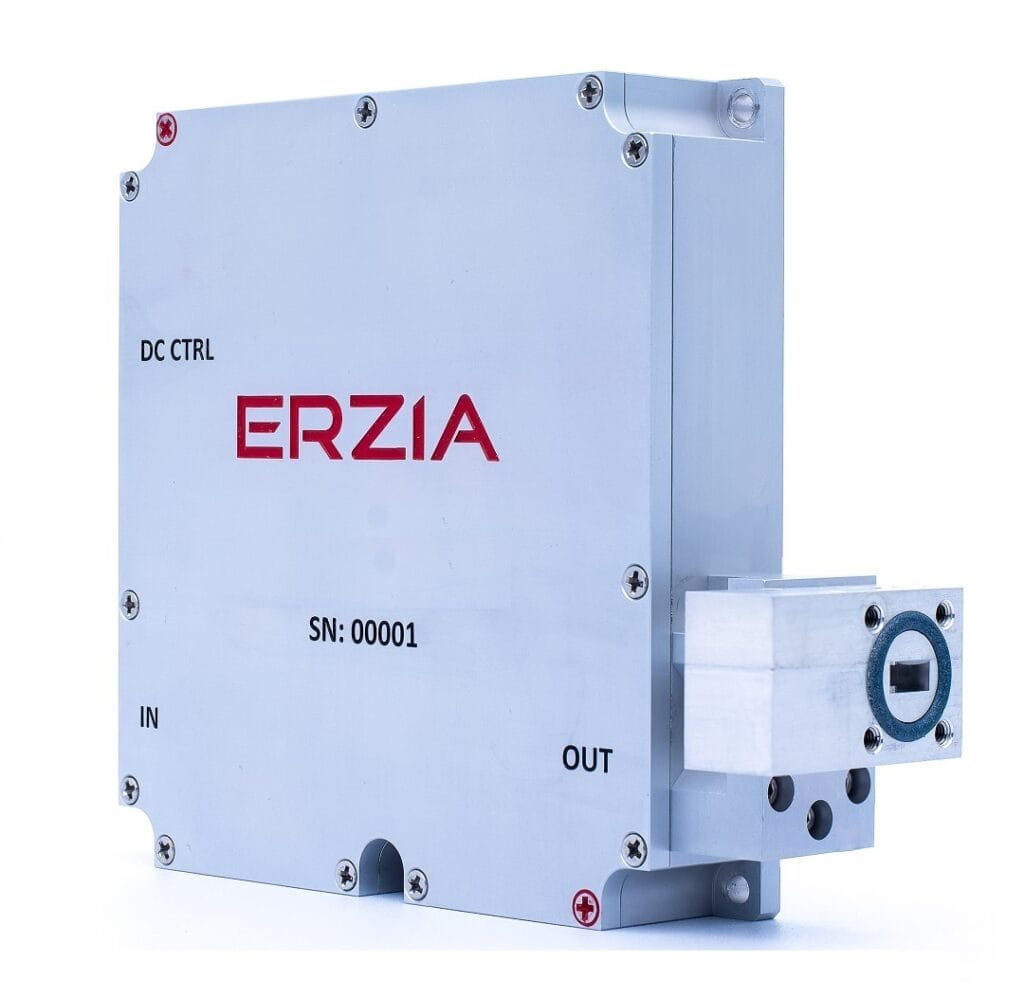

ERZ-HPA-1730-2120-44
K Band High Power Amplifier
Description
The ERZ-HPA-1730-2120-44 is a High-Power Amplifier based in GaN, providing a gain of 50 dB with a Psat of 43.5 dBm. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 17.30-21.20
- Output Power (dBm): 43.5
- Small Signal Gain (dB): 50
- Bias: 28
- Output Saturation Power (dBm): 43.5
- Package Dimensions: 131x100x33.6
- Connectors: 2.92mm / WR42
Specifications
| Frequency Start (GHz): | 17.30 |
| Frequency Stop (GHz): | 21.20 |
| Output Power (dBm): | 43.5 |
| Gain (dB): | 50.00 |
| Gain flatness (dB): | ±4 |
| VSWR IN: | 1.8:1 |
| VSWR OUT: | 1.2:1 |
| Power supply (V): | 28±4 |
| Current (mA): | 5000 |
| Power consumption (W): | 1 |
