ERZ-HPA-1700-2400-34

K Band High Power Amplifier

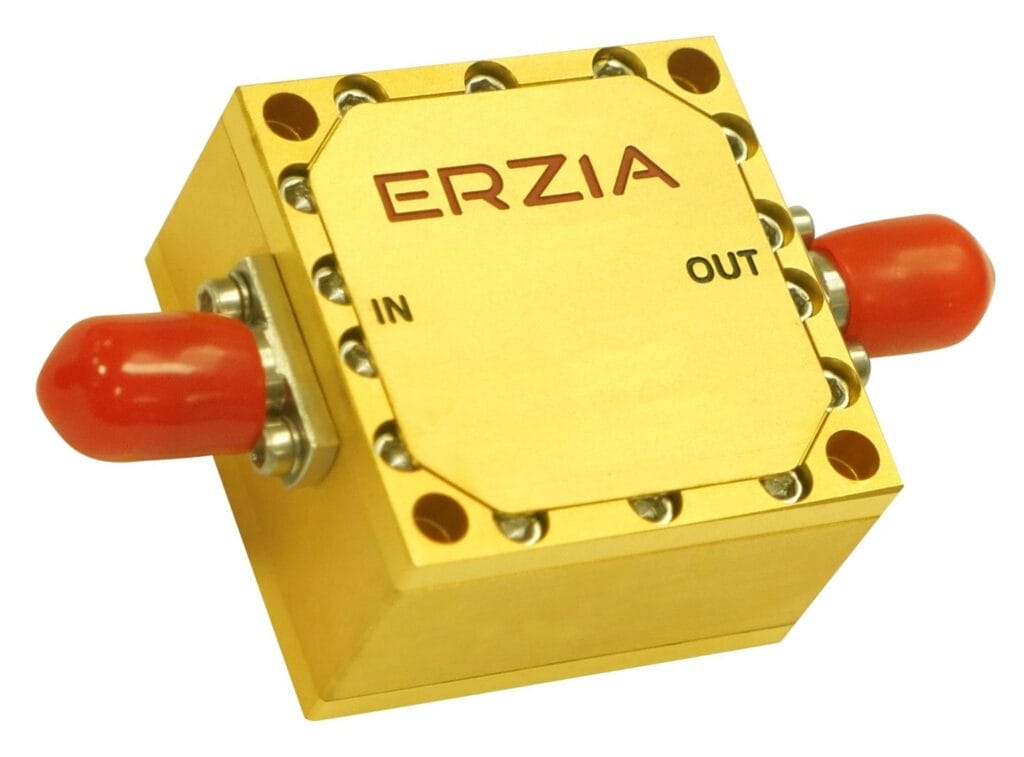

ERZ-HPA-1700-2400-34 K Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-1700-2400-34 is a High Power Amplifier providing an output power of 34 dBm and a gain of 22 dB. The compact size and modularity makes it ideal for a wide range of applications

Download

PDF IconERZ-HPA-1700-2400-34

Key Features

  • Frequency Range (GHz): 17.00-24.00
  • Output Power (dBm): 34
  • Small Signal Gain (dB): 22
  • Noise Figure (dB): 5
  • Bias: Power supply: +12 V
  • Package Dimensions: 30x30x17,5 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 17.00
Frequency Stop (GHz): 24.00
Output Power (dBm): 34
Gain (dB): 22.00
Gain flatness (dB): ±1.5
Noise Figure (dB): 5
VSWR IN: 1.2:1
VSWR OUT: 1.2:1
Power supply (V): 12
Current (mA): 1250
Power consumption (W): 15
Temperature (operation) (°C): -40 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

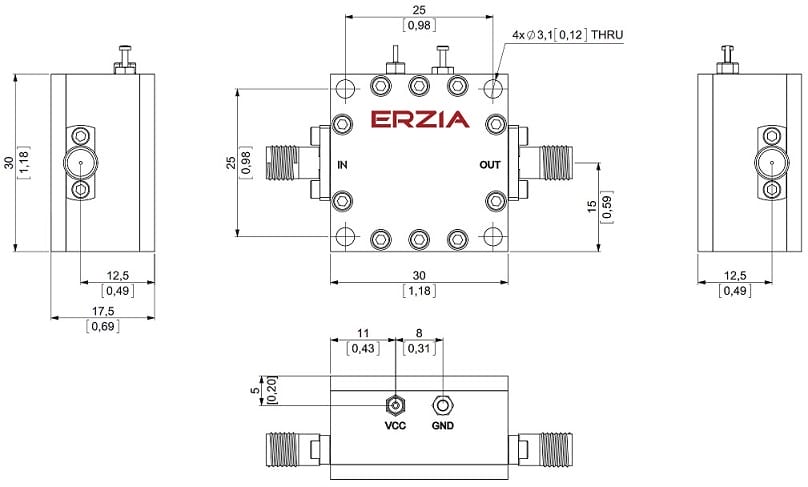

Outline Drawing

Ordering Information
