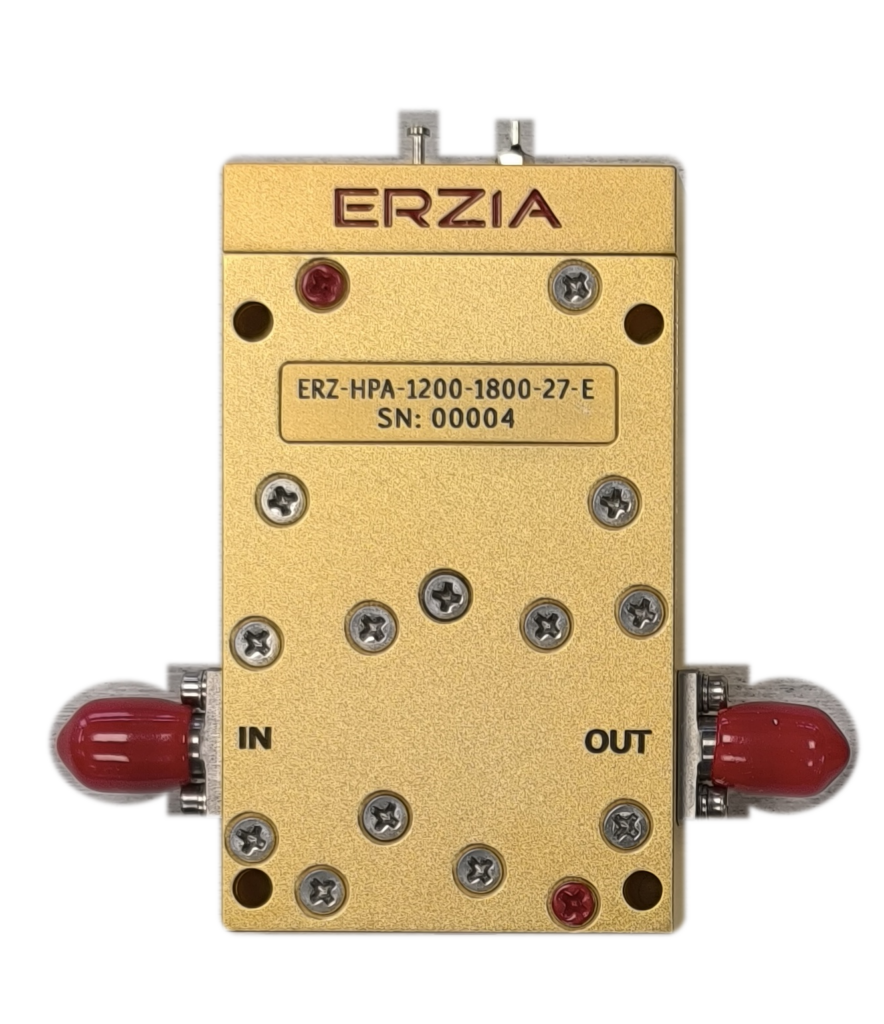

ERZ-HPA-1200-1800-27-E

Ku Band High Power Amplifier

ERZ-HPA-1200-1800-27-E

Login to see price Get a quote

Description

The ERZ-HPA-1200-1800-27-E is a high gain Ku band Power Amplifier providing an output power of 29 dBm and a gain of 50 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-1200-1800-27-E_R1.0

Key Features

  • Frequency Range (GHz): 12.00-18.00
  • Output Power (dBm): 29
  • Small Signal Gain (dB): 50
  • Noise Figure (dB): 1.6
  • Bias: 12+/-3
  • Output Saturation Power (dBm): 29
  • Package Dimensions: 61x36x14.5 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 12.00
Frequency Stop (GHz): 18.00
Output Power (dBm): 29
Gain (dB): 50.00
Gain flatness (dB): ±2
Noise Figure (dB): 1.6
VSWR IN: 1.6:1
VSWR OUT: 1.8:1
Power supply (V): 12
Current (mA): 500
Power consumption (W): 7.8
Max. RF input power (dBm): 20
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

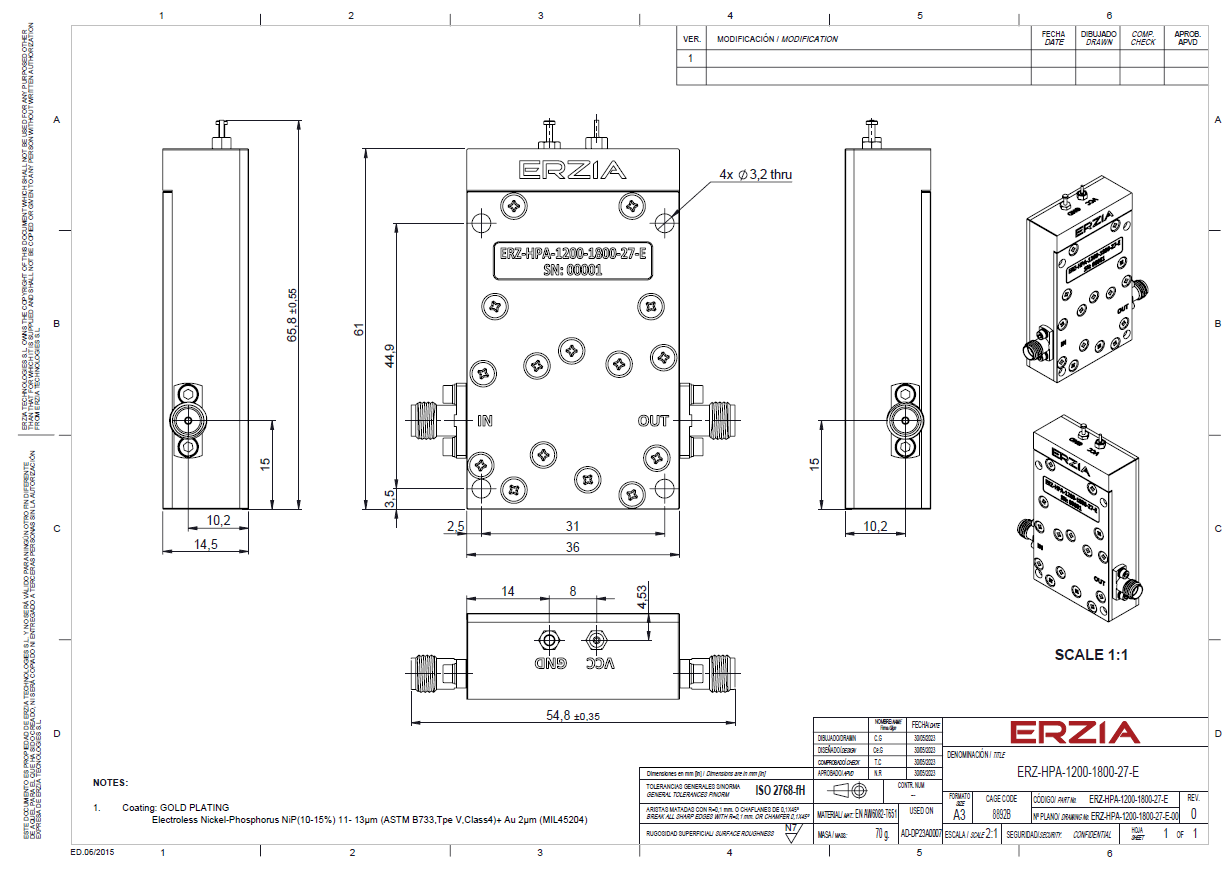

Outline Drawing
