ERZ-HPA-0600-1800-40-E

Wideband High Power Amplifier

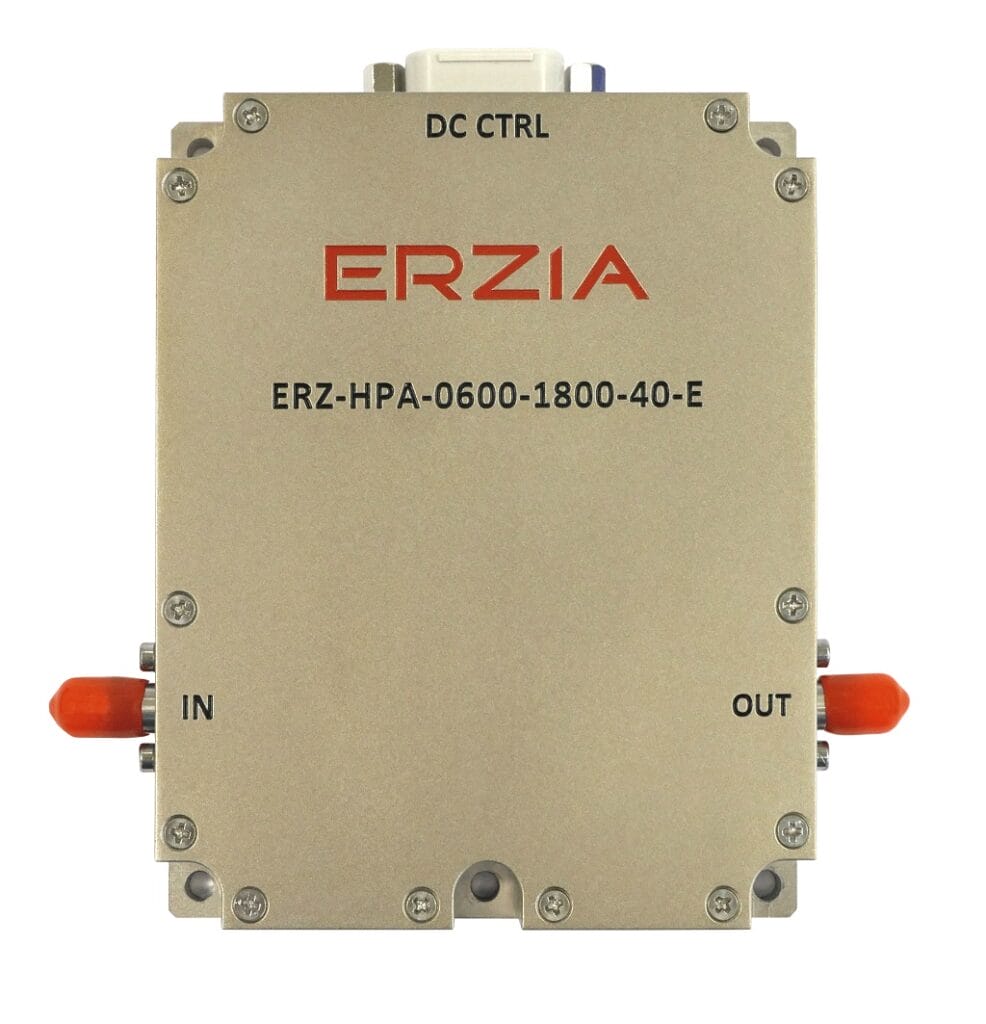

ERZ-HPA-0600-1800-40-E Wideband HPA

Login to see price Get a quote

Description

The ERZ-HPA-0600-1800-40-E is a wideband 6-18 GHz High Power Amplifier providing an output power of 41 dBm with a gain of 46 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0600-1800-40-E_2

Key Features

  • Frequency Range (GHz): 6.00-18.00
  • Output Power (dBm): 41
  • Small Signal Gain (dB): 46
  • Noise Figure (dB): 10
  • Bias: 28 ±4 VDC
  • Package Dimensions: 80x100x21
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 6.00
Frequency Stop (GHz): 18.00
Output Power (dBm): 41
Gain (dB): 46.00
Gain flatness (dB): ±3.5
Noise Figure (dB): 10
VSWR IN: 1.5:1
VSWR OUT: 2.5:1
Power supply (V): 28 ±4
Current (mA): 2678
Power consumption (W): 75
Temperature (operation) (°C): -40º to 70
Temperature (storage) (°C): -55º to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

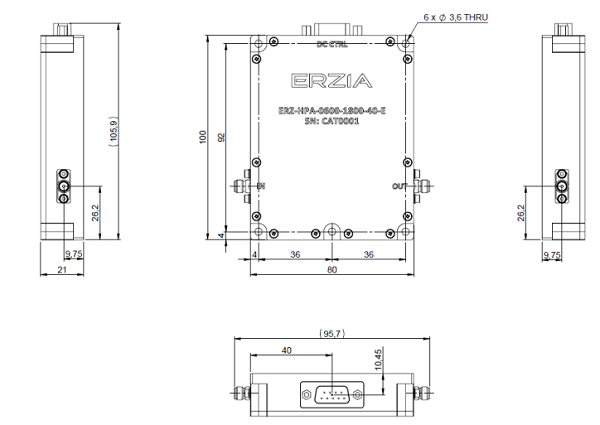

Outline Drawing

Ordering Information
