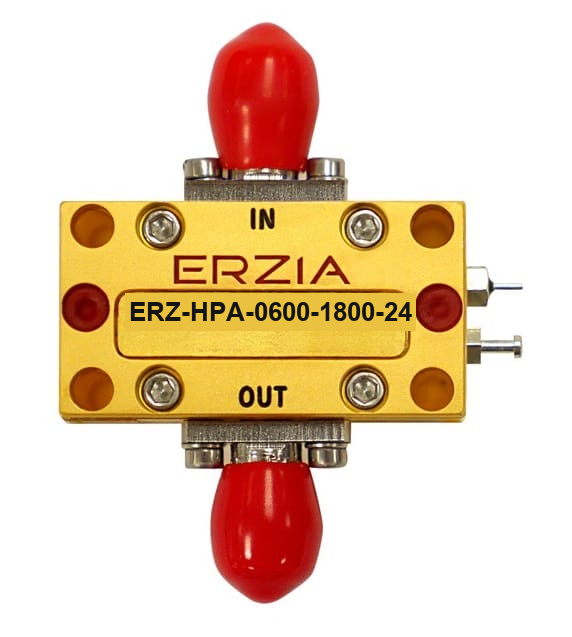

ERZ-HPA-0600-1800-24
Wideband High Power Amplifier
Description
Key Features
- Frequency Range (GHz): 6.00-18.00
- Output Power (dBm): 25
- Small Signal Gain (dB): 20
- Noise Figure (dB): 9
- Bias: 12 ± 3
- Output Saturation Power (dBm): 25

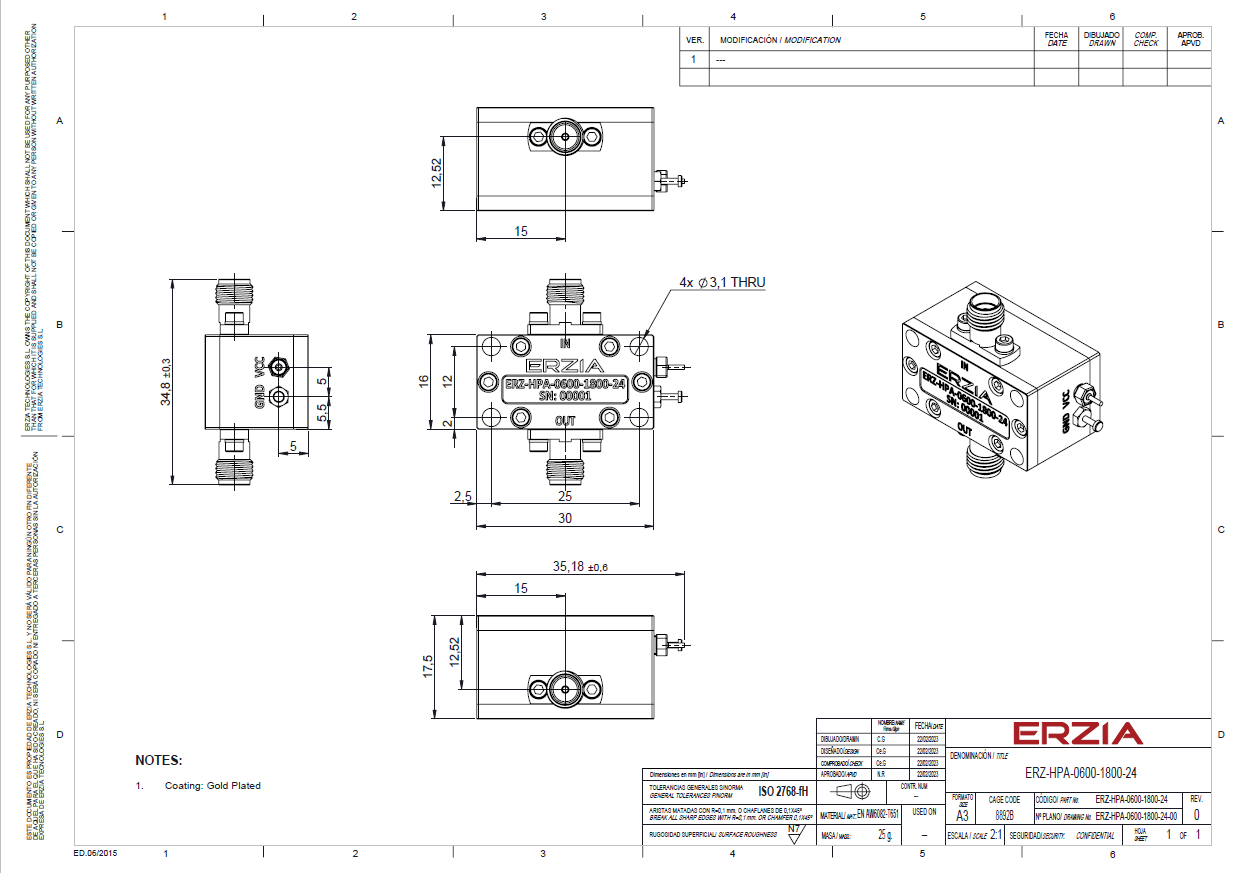

- Package Dimensions: 16 x 30 x 17.5
- Connectors: SMA Female
Specifications
| Frequency Start (GHz): | 6.00 |
| Frequency Stop (GHz): | 18.00 |
| Output Power (dBm): | 25 |
| Gain (dB): | 20.00 |
| Gain flatness (dB): | ±1.5 |
| Noise Figure (dB): | 9 |
| VSWR IN: | 2.0:1 |
| VSWR OUT: | 3.0:1 |
| Power supply (V): | 12 ± 3 |
| Current (mA): | 134 |
| Power consumption (W): | 1.6 |
| Temperature (operation) (°C): | -45 to +85 |
| Temperature (storage) (°C): | -55 to +125 |
Applications
Ordering Information
