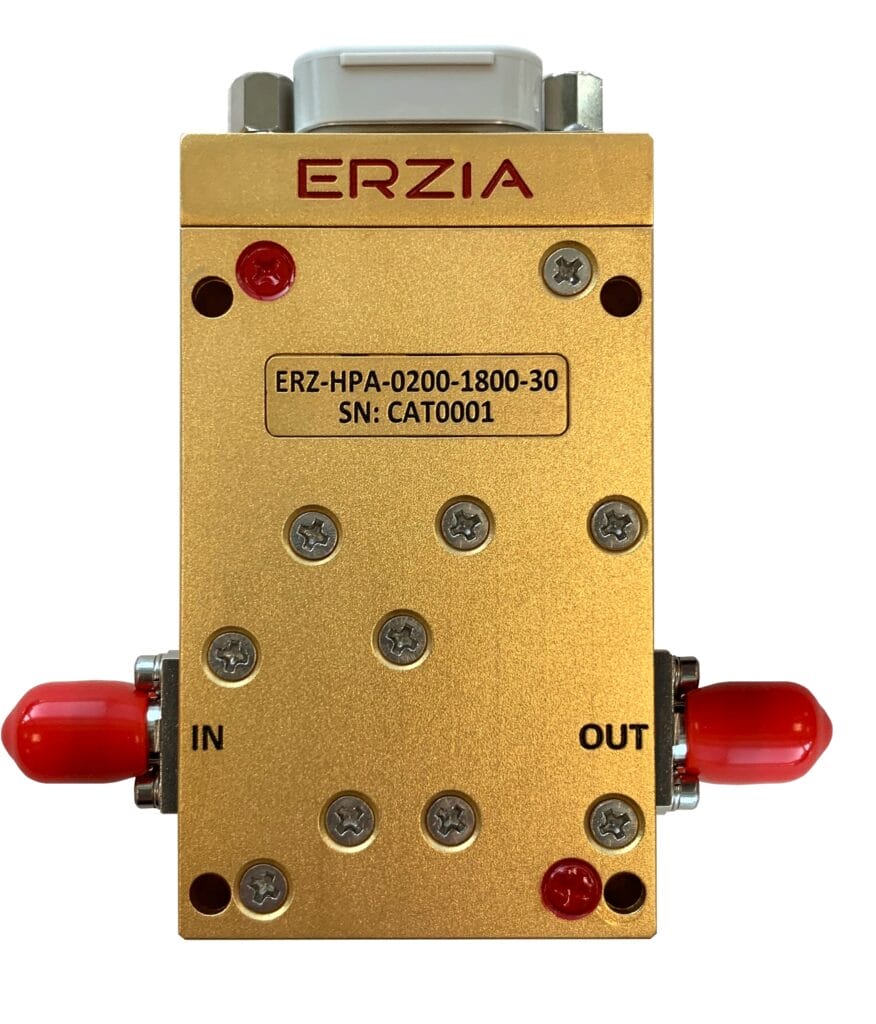

ERZ-HPA-0200-1800-30-DB9
Wideband High Power Amplifier
Description
The ERZ-HPA-0200-1800-30-DB9 is a Wideband High Power Amplifier providing an output power higher than 30 dBm and a gain of 33 dB. The compact size and modularity make it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 2.00-18.00
- Output Power (dBm): 30
- Small Signal Gain (dB): 33
- Noise Figure (dB): 2.5
- Bias: 12 ± 3 V
- Package Dimensions: 35.9 x 60.9 x 14.5 mm
- Connectors: SMA Female and DB9 for DC and control
Specifications
| Frequency Start (GHz): | 2.00 |
| Frequency Stop (GHz): | 18.00 |
| Output Power (dBm): | 30 |
| Gain (dB): | 33.00 |
| Gain flatness (dB): | ±1 |
| Noise Figure (dB): | 2.5 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.5:1 |
| Power supply (V): | 12 ±3 |
| Current (mA): | 1200 |
| Power consumption (W): | 13.5 |
| Temperature (operation) (°C): | -45 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace
Satcom / Telecom
Space / Aerospace

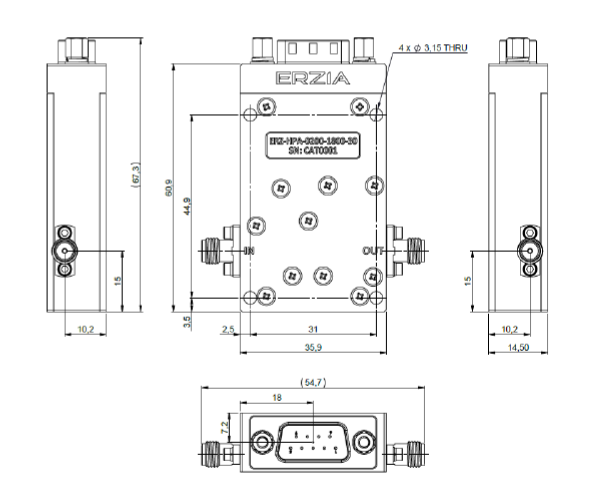

Outline Drawing
