ERZ-HPA-0175-0625-43

Wideband High Power Amplifier

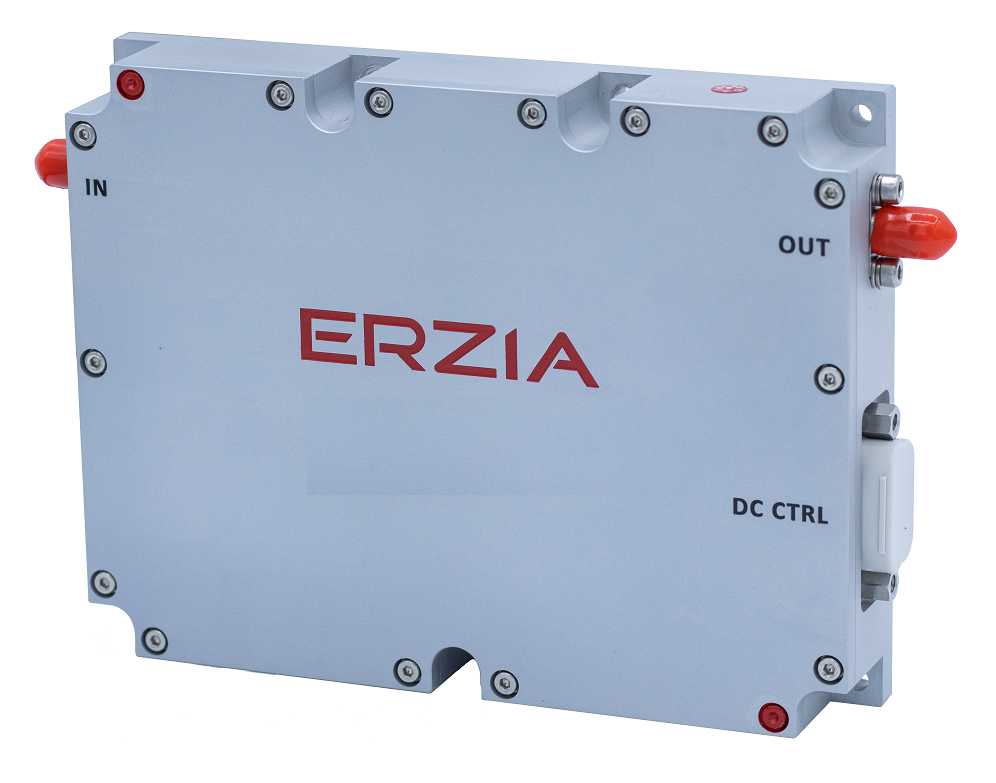

ERZ-HPA-0175-0625-43 Wideband HPA

Login to see price Get a quote

Description

The ERZ-HPA-0175-0625-43 is a Wideband Band High Power Amplifier providing an output power of 43 dBm and a gain of 43 dB. The compact size and modularity
makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0175-0625-43_2

Key Features

  • Frequency Range (GHz): 1.75-6.25
  • Output Power (dBm): 43
  • Small Signal Gain (dB): 43
  • Bias: 28 ±4 VDC
  • Package Dimensions: 125X95X22 mm (LxWxH)
  • Connectors: RF: SMA Female / DC&CTRL: DB9 Male

Specifications

Frequency Start (GHz): 1.75
Frequency Stop (GHz): 6.25
Output Power (dBm): 43
Gain (dB): 43.00
Gain flatness (dB): ±1.25
VSWR IN: 1.5:1
VSWR OUT: 1.8:1
Power supply (V): 28 ±4
Current (mA): 3750
Power consumption (W): 105
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

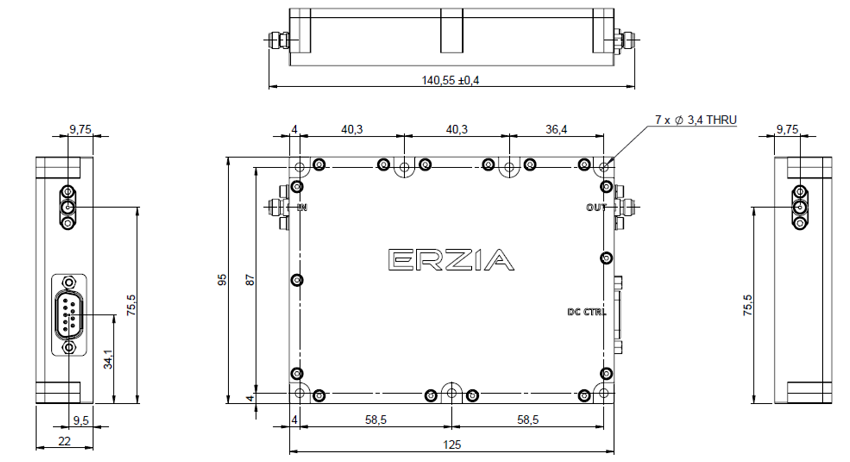

Outline Drawing

Ordering Information
