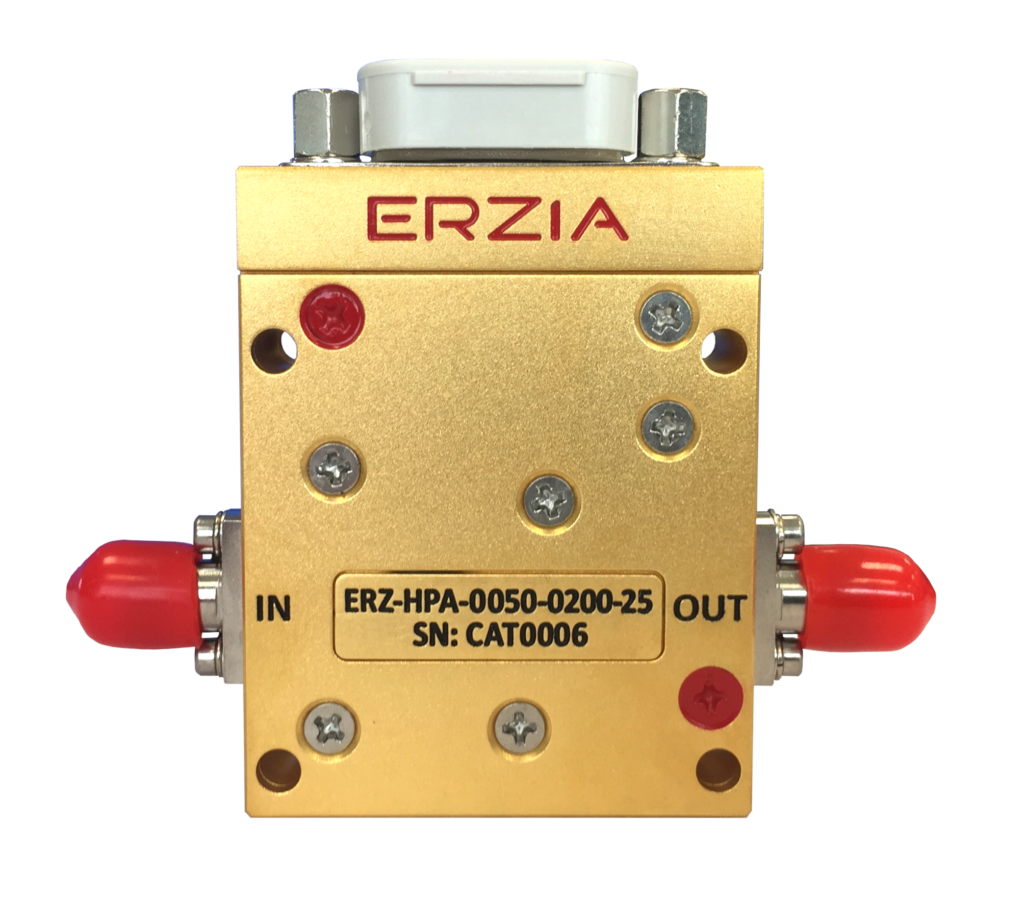

ERZ-HPA-0050-0200-25
L Band High Power Amplifier
Description
The ERZ-HPA-0050-0200-25 is a High Power Amplifier providing an output power of 28 dBm and a gain of 27 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 0.50-2.00
- Output Power (dBm): 28
- Small Signal Gain (dB): 27
- Noise Figure (dB): 2.8
- Bias: 12 ±3 VDC
- Package Dimensions: 36x45.6x14.5 mm (LxWxH)
- Connectors: SMA Female
Specifications
| Frequency Start (GHz): | 0.50 |
| Frequency Stop (GHz): | 2.00 |
| Output Power (dBm): | 28 |
| Gain (dB): | 27.00 |
| Gain flatness (dB): | ±1 |
| Noise Figure (dB): | 2.8 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.2:1 |
| Power supply (V): | 12 ±3 |
| Current (mA): | 375 |
| Power consumption (W): | 4.5 |
| Temperature (operation) (°C): | -45 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace
Satcom / Telecom
Space / Aerospace

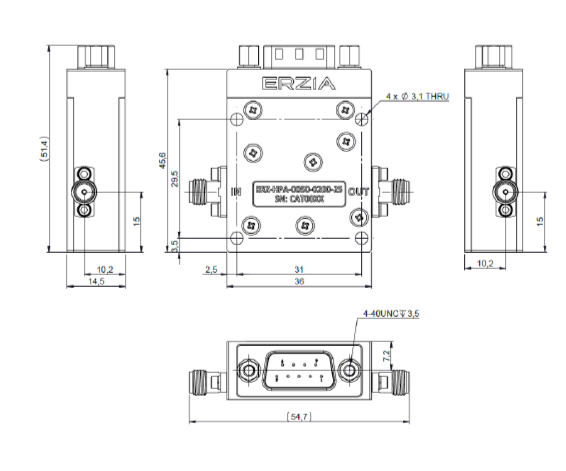

Outline Drawing
