ERZ-HPA-0000-1200-26

Wideband High Power Amplifier

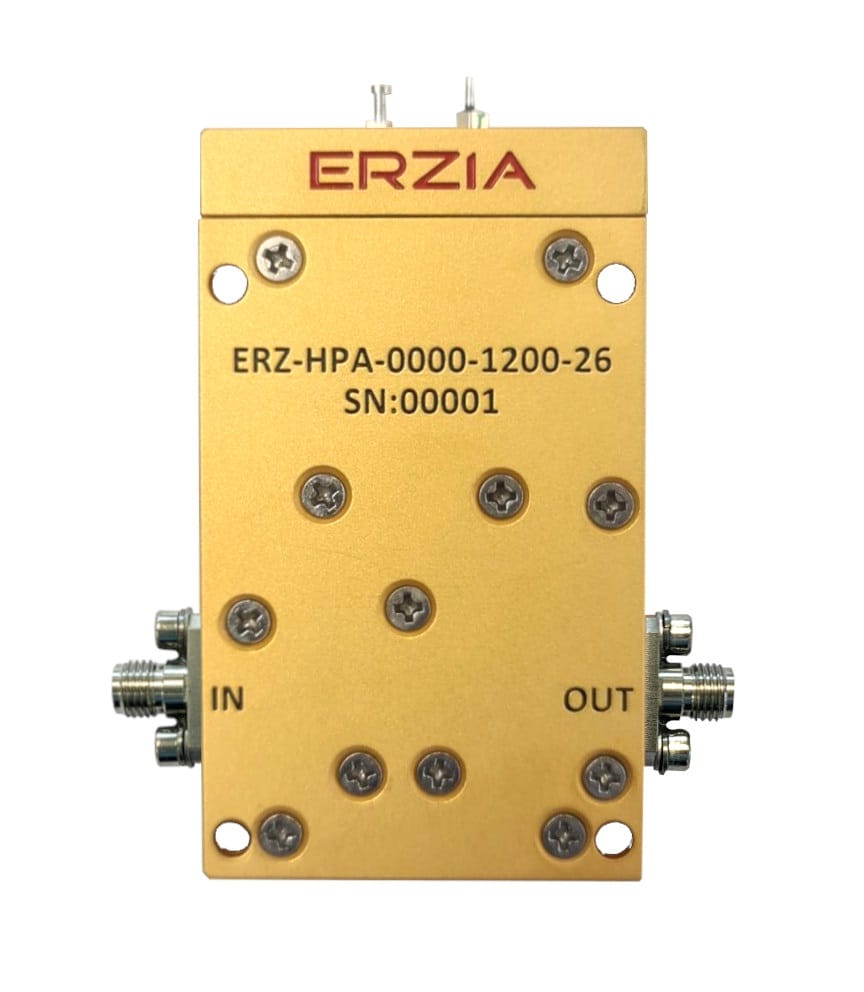

ERZ-HPA-0000-1200-26 Wideband HPA

Login to see price Get a quote

Description

The ERZ-HPA-0010-1200-26 is a High Power Amplifier providing an output power of 27 dBm and a gain of 32 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0000-1200-26_2

Key Features

  • Frequency Range (GHz): 0.00-16.00
  • Output Power (dBm): 27
  • Small Signal Gain (dB): 32
  • Bias: 12 ±3 VDC
  • Package Dimensions: 36x61x14.5 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 0.00
Frequency Stop (GHz): 16.00
Output Power (dBm): 27
Gain (dB): 32.00
Gain flatness (dB): ±1.5
VSWR IN: 1.3:1
VSWR OUT: 1.3:1
Power supply (V): 12 ±3
Current (mA): 433
Power consumption (W): 5.2
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

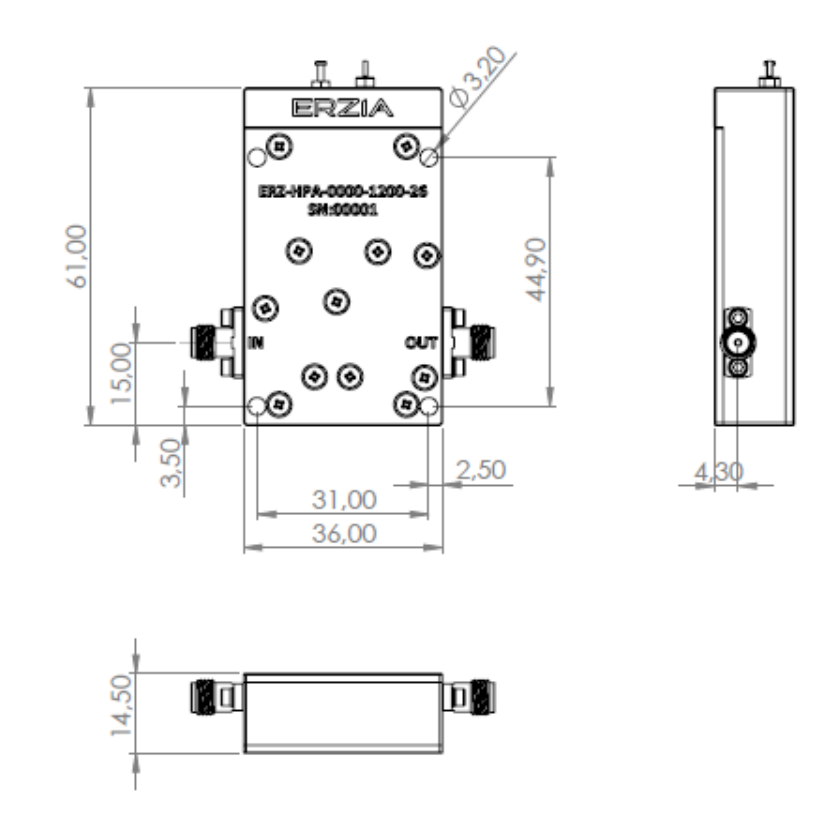

Outline Drawing

Ordering Information
