ERZ-HPF-0210-0480-1.3

HIGH PASS FILTER

Description:

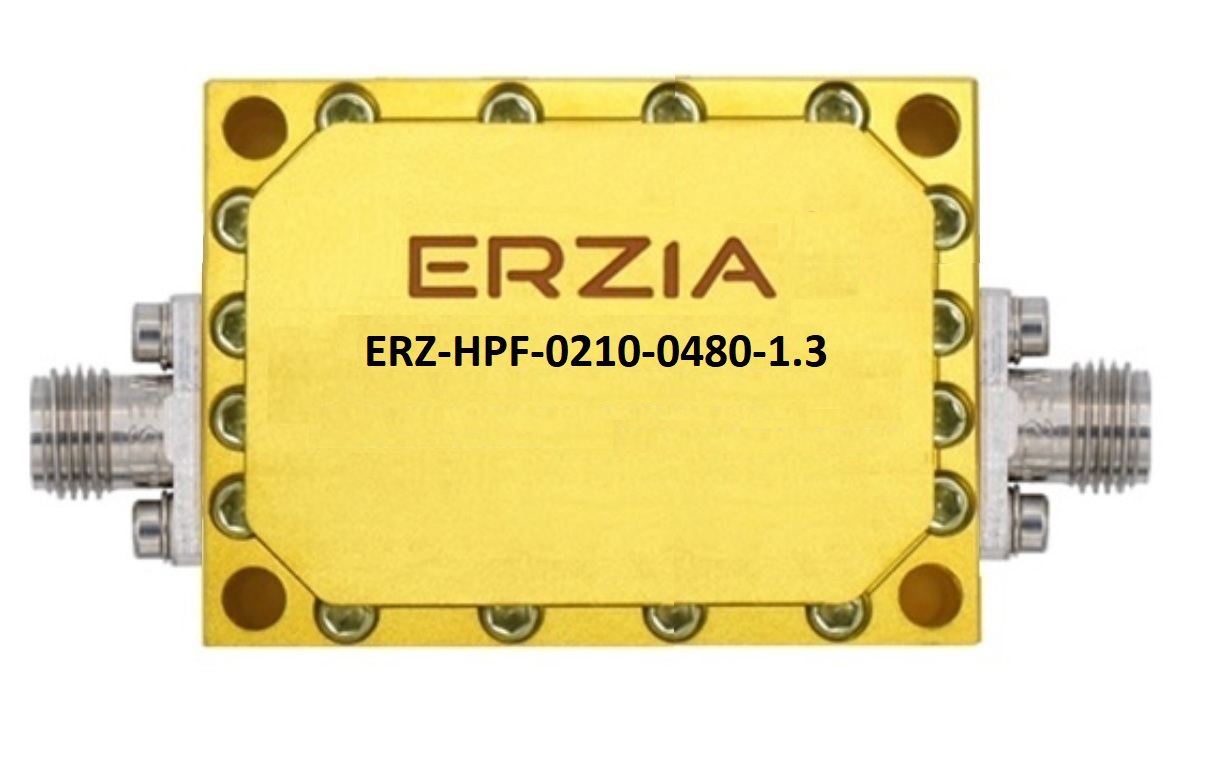

The ERZ-HPF-0210-0480-1.3 is a Suspended
Substrate Stripline High Pass filter integrated in a
compact, rugged and connectorized module
allowing easy integration in a wide range of final
applications.

Download:

ERZ-HPF-0210-0480-1.3.pdf

Key Features

Frequency Range (GHz):

2.10 to 4.80

Type:

HPF

Technology:

Package Dimensions:

55x40x10 mm

Connectors:

SMA Female

Specification

Frequency Start (GHz):

2.10

Frequency Stop (GHz):

4.80

Insertion Loss (dB):

0.50

Return Loss (dB):

15.00

Minimum frequency for 30 dB out of band rejection (GHz):

1.80

Minimum frequency for 60 dB out of band rejection (GHz):

1.70

Max. RF input power (dBm):

Temperature (operation) (°C):

-40 to 85

Temperature (storage) (°C):

-55 to 125

Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:

Ordering Information:
