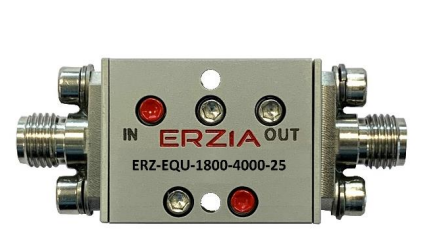

ERZ-EQU-1800-4000-25 Equalizer

Login to see price Get a quote

Description

The ERZ-EQU-1800-4000-25 provides a positive gain slope from 18 to 40GHz and reduces losses over frequency for amplifiers and other RF devices. The ERZIA equalizer is based on high frequency resisitors over microstrip technology.

Download

PDF IconERZ-EQU-1800-4000-25_0

Key Features

  • Frequency Range (GHz): 18-40
  • Insertion Loss @min frequency (dB): -23
  • Insertion Loss @max frequency (dB): -3
  • Package Dimensions: 24x18x10
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 18
Frequency Stop (GHz): 40
Insertion Loss@min freq(dB): -23
Insertion Loss@max freq(dB): -3
VSWR IN: 1.5:1
VSWR OUT: 1.5:1
Max. RF input power (dBm): 22
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
