ERZ-LNA-1770-2200-40-1.5-A

PHOTO_ERZ-LNA-1770-2200-40-1.5_pins

Login to see price Get a quote

Ka Band Low Noise Amplifier

Description

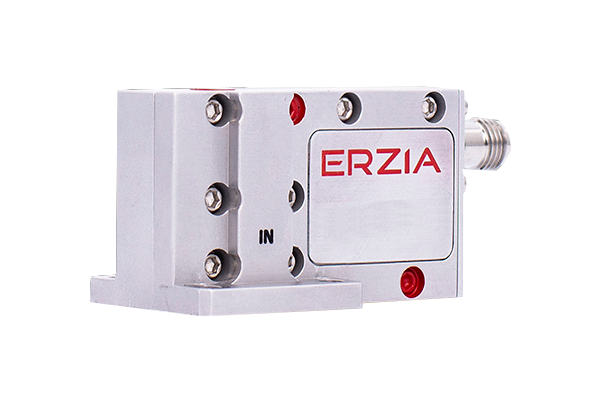

The ERZ-LNA-1770-2200-40-1.5-A is a Low Noise Amplifier providing a gain of 39 dB with a noise figure of 1.2 dB. The compact size and modularity make it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-1770-2200-40-1.5-A

Key Features

  • Frequency Range (GHz): 17.70-22.00
  • Output Power (dBm): 10
  • Small Signal Gain (dB): 39
  • Noise Figure (dB): 1.2
  • Bias: 12±3
  • Package Dimensions: 41.4x21x22.41
  • Connectors: SMA Female IN / WR42 OUT

Specifications

Frequency Start (GHz): 17.70
Frequency Stop (GHz): 22.00
Output Power (dBm): 10
Gain (dB): 39
Gain flatness (dB): ±0.5
Noise Figure (dB): 1.2
VSWR IN: 1.6:1
VSWR OUT: 1.6:1
Power supply (V): 12±3
Current (mA): 916
Power consumption (W): 1.1
Max. Input DC (no damage) (V): 15
Max. RF input power (dBm): 13
Temperature (operation) (°C): -55 to 70ºC
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

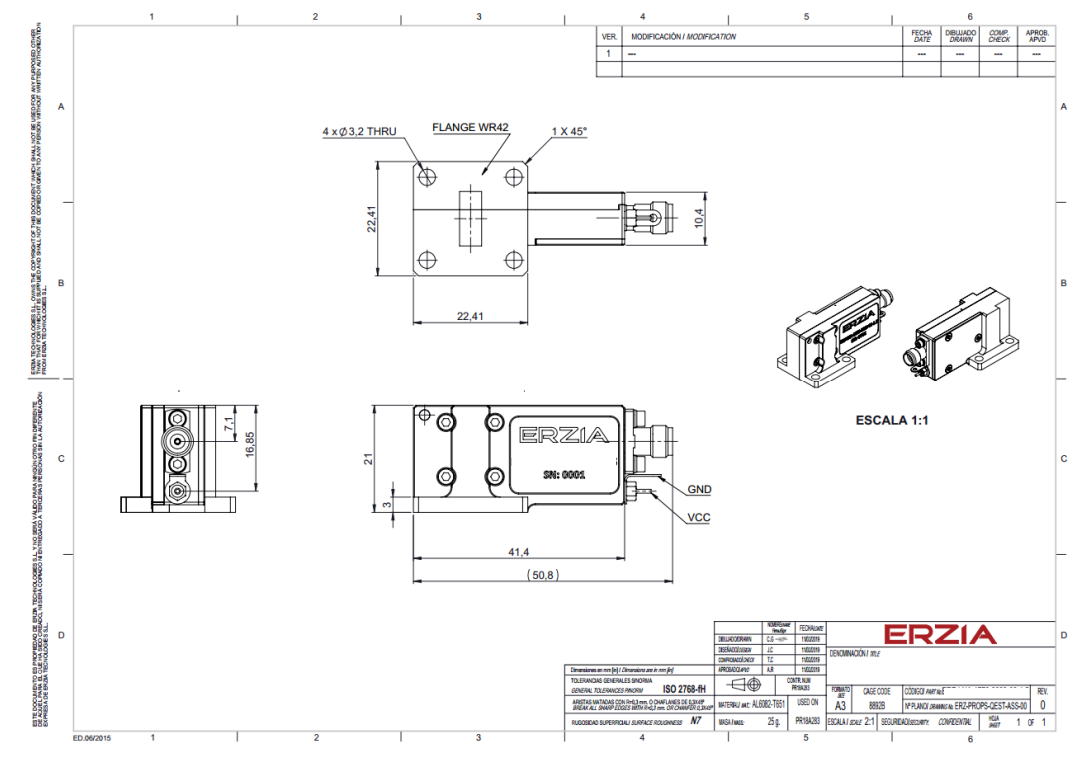

Outline Drawing

Ordering Information
