ERZ-LNA-0700-1300-45-1

photo_ERZ-LNA-0700-1300-45-1

Login to see price Get a quote

X Band Low Noise Amplifier

Description

The ERZ-LNA-0700-1300-21-1 is a Low Noise Amplifier providing a gain up to 24 dB with a noise figure of 1.2 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0700-1300-45-1

Key Features

  • Frequency Range (GHz): 7.00-13.00
  • Output Power (dBm): 11
  • Small Signal Gain (dB): 46
  • Noise Figure (dB): 1.2
  • Bias: 12±3
  • Package Dimensions: 16.3x17.8x7.3 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 7.00
Frequency Stop (GHz): 13.00
Output Power (dBm): 11
Gain (dB): 46
Gain flatness (dB): ±2
Noise Figure (dB): 1.2
VSWR IN: 1.5:1
VSWR OUT: 1.4:1
Power supply (V): 12±3
Current (mA): 416
Power consumption (W): 0.5
Max. Input DC (no damage) (V): 15
Max. RF input power (dBm): 20
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

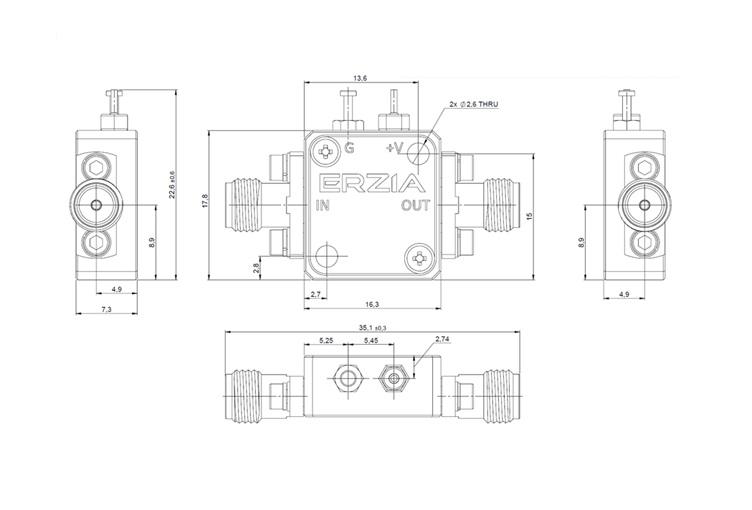

Outline Drawing

Ordering Information
