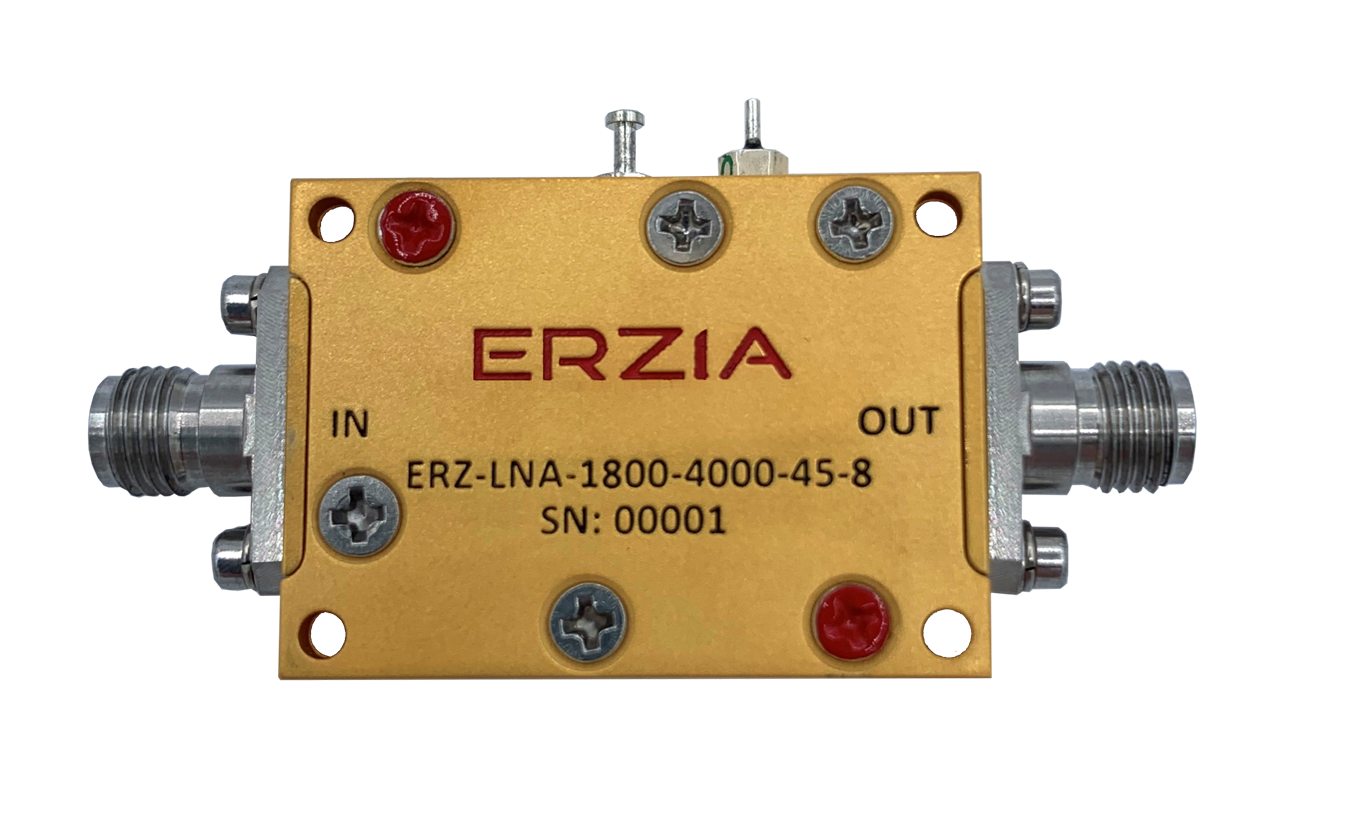

ERZ-LNA-1800-4000-45-8

Wideband Low Noise Amplifier

Key Features
Frequency Range (GHz):
18.0 to 40
Output Power (dBm):
18
Small Signal Gain (dB):
38
Noise Figure (dB):
5
Bias:
12±3
Package Dimensions:
32x23x10
Output Saturation Power (dBm):
18.00
Connectors:
2.92 mm (F)
Frequency Start (GHz)
18.0
Frequency Stop (GHz)
40
Output Power (dBm)
18
Gain (dB)
38
Gain flatness (dB)
±1.5
Noise Figure (dB)
5
VSWR IN
1.5:1
VSWR OUT
1.5:1
Power supply (V)
12 ±3
Current (mA)
166.66
Power consumption (W)
2
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
23
Temperature (operation) (°C)
-45 to 85ºC
Temperature (storage) (°C)
-55 to 125ºC
Outline Drawing:
Ordering Information:
