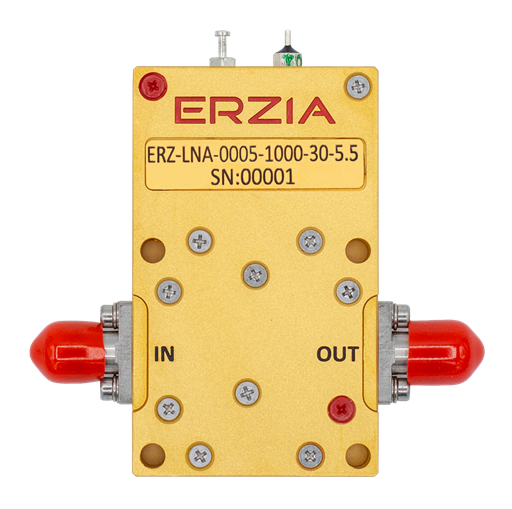

ERZ-LNA-0005-1000-30-5.5

Wideband Low Noise Amplifier

Description:

The ERZ-LNA-0005-1000-30-5.5 is a Low Noise Amplifier providing a noise figure of 5 dB and gain of 31 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
0.05 to 10.0
Output Power (dBm):
31
Small Signal Gain (dB):
31
Noise Figure (dB):
5
Bias:
12 ±3 VDC
Package Dimensions:
30x50x10 mm (LxWxH)
Connectors:
SMA Female
Frequency Start (GHz)
0.05
Frequency Stop (GHz)
10.0
Output Power (dBm)
31
Gain (dB)
31
Gain flatness (dB)
±1.5
Noise Figure (dB)
5
VSWR IN
1.5:1
VSWR OUT
1.5:1
Power supply (V)
12 ±3
Current (mA)
833
Power consumption (W)
10
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
19
Temperature (operation) (°C)
-40 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
