ERZ-LNA-1700-2400-25-2.5

Login to see price Get a quote

K Band Low Noise Amplifier

Description

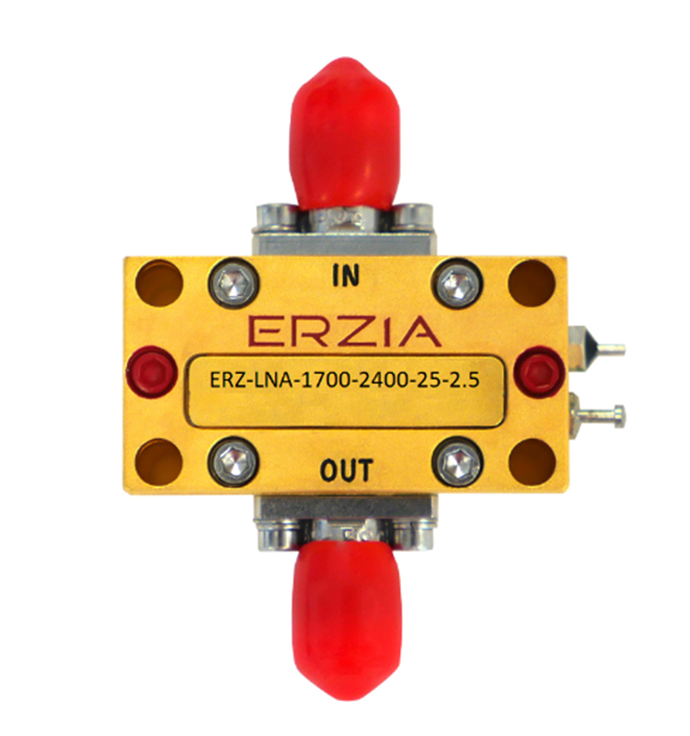

The ERZ-LNA-1700-2400-25-2.5 is a K Band Low Noise Amplifier providing a gain of 26 dB and a noise figure of 2.5 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-1700-2400-25-2.5_0

Key Features

  • Frequency Range (GHz): 17.00-24.00
  • Output Power (dBm): 15
  • Small Signal Gain (dB): 26
  • Noise Figure (dB): 2.5
  • Bias: Power supply: 12 V
  • Package Dimensions: 16x30x17,5 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 17.00
Frequency Stop (GHz): 24.00
Output Power (dBm): 15
Gain (dB): 26.00
Gain flatness (dB): ±2
Noise Figure (dB): 2.5
VSWR IN: 2.0:1
VSWR OUT: 2.0:1
Power supply (V): 12 ±3
Current (mA): 42
Power consumption (W): 0.5
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing

Ordering Information
