Wideband Power Amplifier
Description:

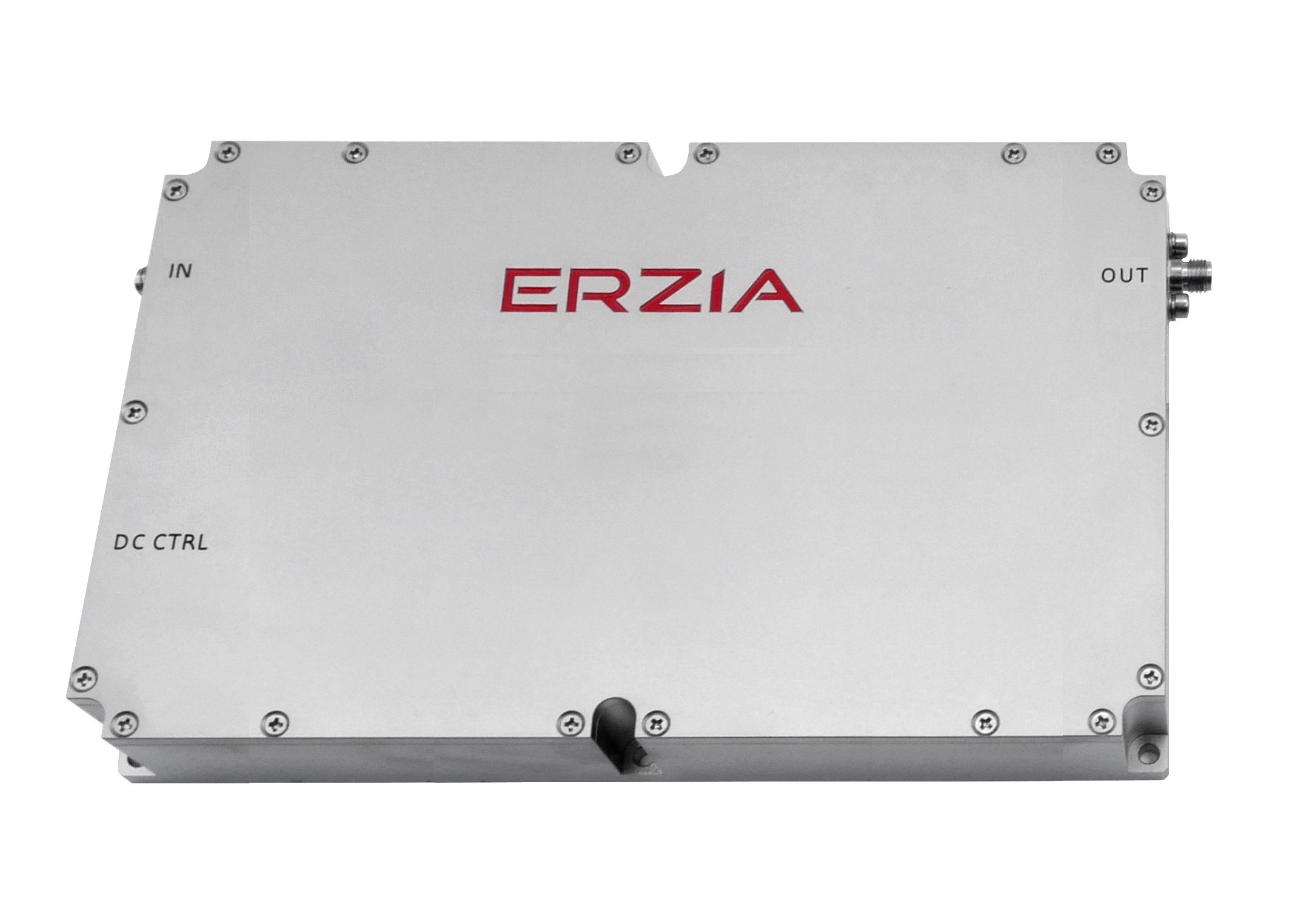

The ERZ-HPA-0050-0600-50 is a High Power Amplifier providing an output power of 50 dBm and a gain of 50 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 0.50
|
|---|---|
| Frequency Stop (GHz) | 6.0
|
| Output Power (dBm) | 50
|
| Gain (dB) | 50
|
| Gain flatness (dB) | ±2.5
|
| Noise Figure (dB) | 7
|
| VSWR IN | 2.0:1
|
| VSWR OUT | 3.0:
|
| Power supply (V) | 28±4
|
| Current (mA) | 25000
|
| Power consumption (W) | 600
|
| Max. Input DC (no damage) (V) | 36
|
| Max. RF input power (dBm) | 15
|
| Temperature (operation) (°C) | -40 to +70
|
| Temperature (storage) (°C) | -55 to +125
|
Applications:
Jamming

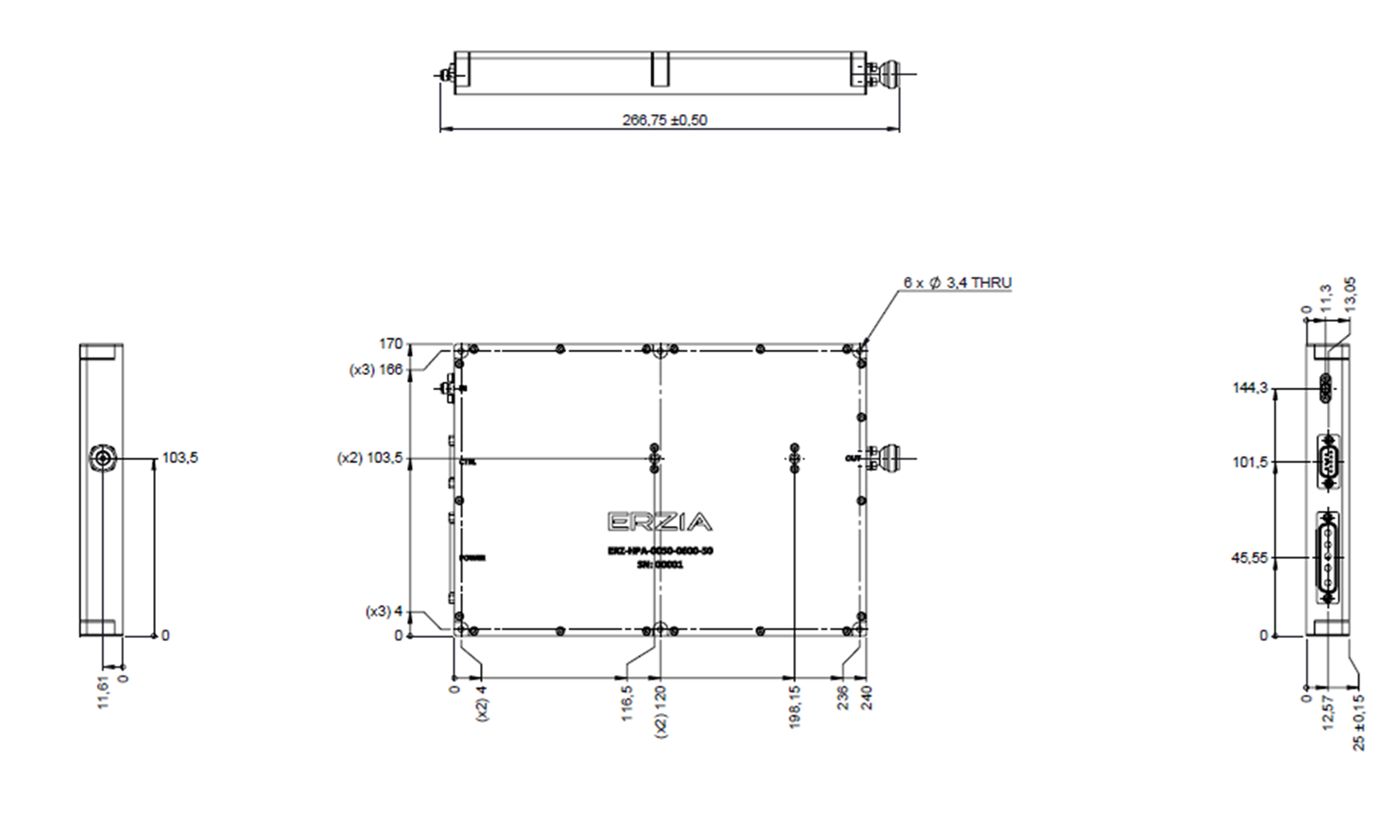

Outline Drawing:
Ordering Information:
