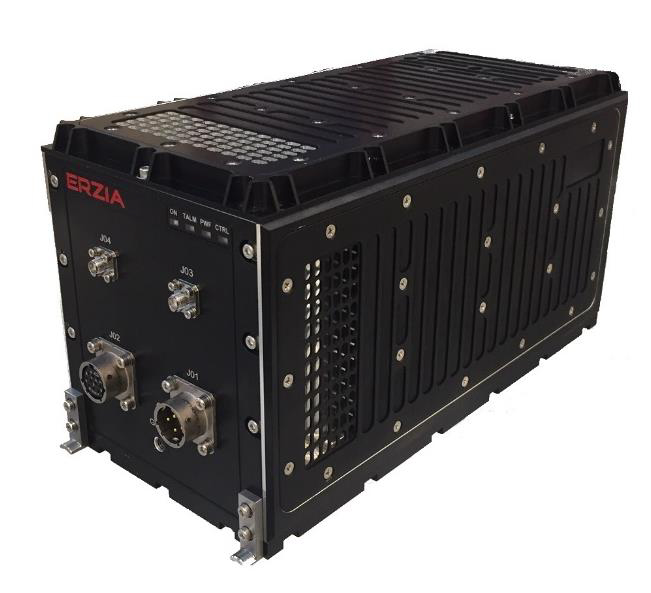

ERZ-BUC-4775-4825-37

Login to see price Get a quote

Download:

ERZ-BUC-4775-4825-37.pdf

Key Features:

RF Out (GHz):

47.75-48.25

IF In (MHz):

1250-1750

Instantaneous BW:

500 MHz

Gain (dB):

50

Psat (dBm):

37.00

Plin (dBm):

34.00

Package Dimensions:

285 x 135 x 155 mm

RF Connectors: (I/O):

SMA Female / WR-19

LO Connectors:

SMA Female

Specifications:

Input Frequency Range (GHz):

1.25-1.75

Bandwidth (MHz):

500

Output Frequency Range (GHz):

47.75-48.25

External LO Frequency range (GHz):

9.1-9.7

LO Input Power (dBm):

10-13

Output Power (@Psat) (dBm):

36-38

Small Signal Gain (dB):

50-52

Gain Flatness (dB):

±1

Input VSWR:

1.3:1-1.5:1

Output VSWR:

1.2:1-1.5:1

Input Voltage (V):

24-32

Power Consumption (W):

200

Connectors:

RF: SMA Female/ WR-19 (IN/OUT)
LO: SMA Female

Applications:

Satcom
Aerospace
