ERZ-LPF-0000-0250-1.3

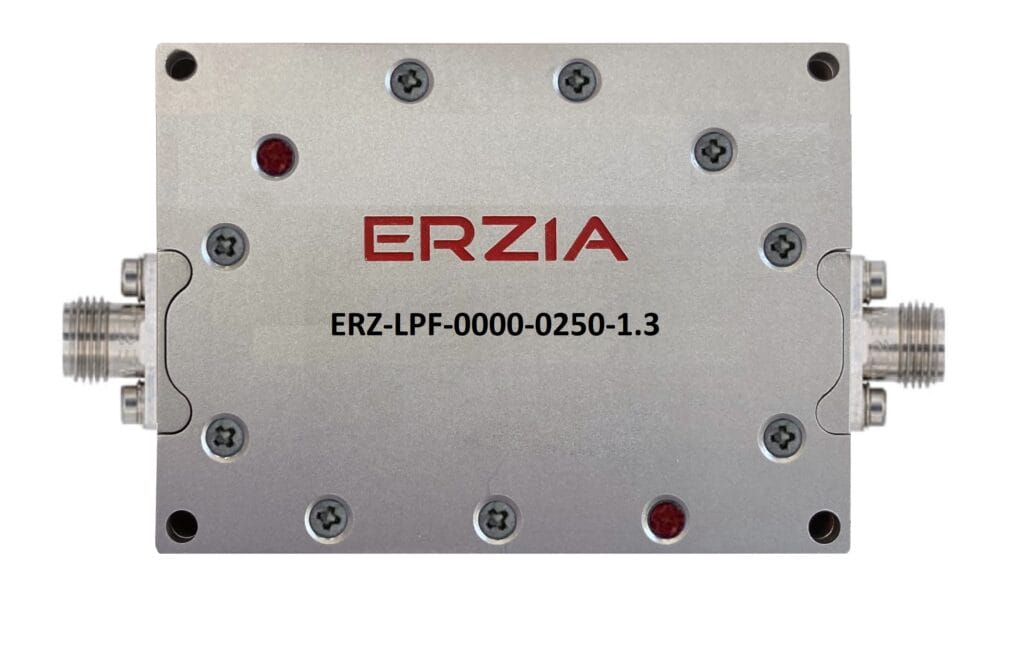

ERZ-LPF-0000-0250-1.3 Suspended Substrate

Login to see price Get a quote

Low Pass Fiter

Description

The ERZ-LPF-0000-0250-1.3 is a Suspended Substrate Stripline Low Pass filter integrated in a compact, rugged and connectorized module allowing easy integration in a wide range of final applications.

Download

PDF IconERZ-LPF-0000-0250-1.3_2

Key Features

  • Frequency Range (GHz): 0.00-2.50
  • Type: LPF
  • Technology: SS
  • Package Dimensions: 55x40x10 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 0.00
Frequency Stop (GHz): 2.50
Insertion Loss (dB): 0.5
Return Loss (dB): 15
Maximum frequency for 30 dB out of band rejection (GHz): 2.77
Maximum frequency for 60 dB out of band rejection (GHz): 2.88
Max. RF input power (dBm): 40
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
