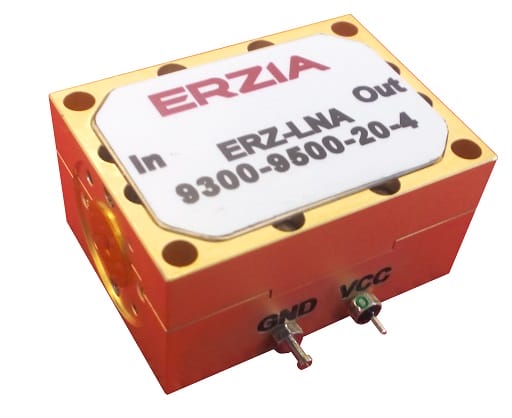

ERZ-LNA-9300-9500-20-4
W Band Low Noise Amplifier
Description
The ERZ-LNA-9300-9500-20-4 is a Low Noise Amplifier providing a gain of 20 dB with a noise figure of 4 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 93.00-95.00
- Small Signal Gain (dB): 21
- Noise Figure (dB): 4
- Bias: 6 V
- Package Dimensions: 38.1x27.9x19 mm
- Connectors: WR10
Specifications
| Frequency Start (GHz): | 93.00 |
| Frequency Stop (GHz): | 95.00 |
| Gain (dB): | 21.00 |
| Gain flatness (dB): | ±1 |
| Noise Figure (dB): | 4 |
| VSWR IN: | 4.7:1 |
| VSWR OUT: | 1.6:1 |
| Power supply (V): | 6±1 |
| Current (mA): | 0.83 |
| Power consumption (W): | 0.5 |
| Temperature (operation) (°C): | -35 to 70 |
| Temperature (storage) (°C): | -45 to 85 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

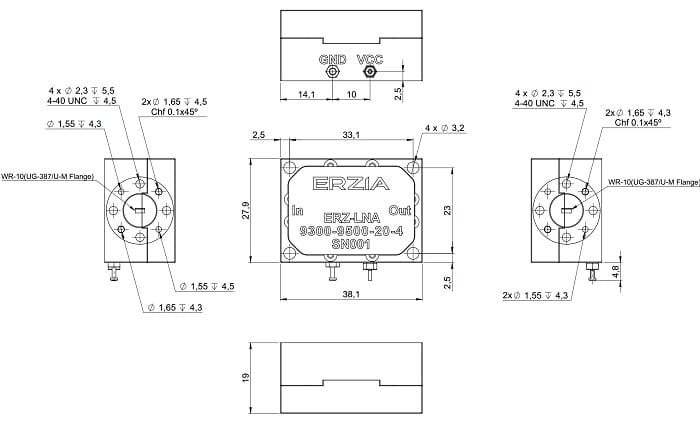

Outline Drawing
Ordering Information
