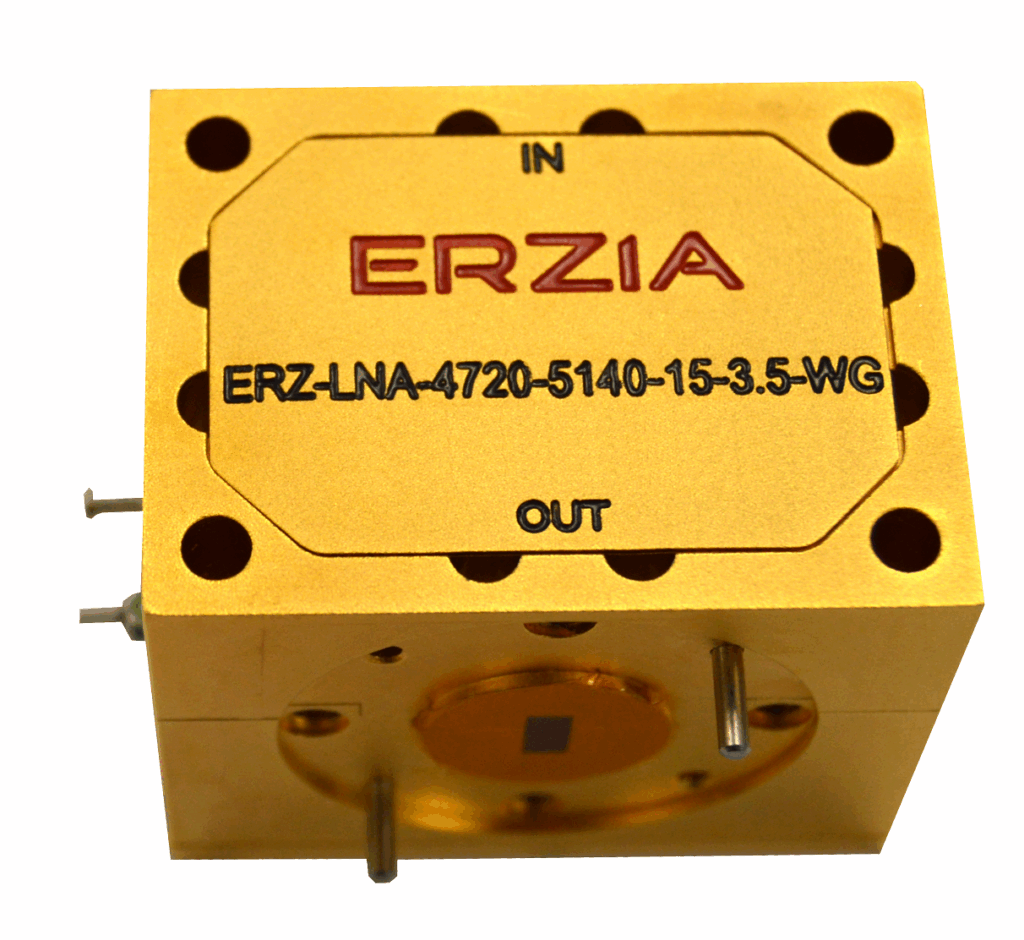

ERZ-LNA-4720-5140-15-3.5
V Band Low Noise Amplifier
Description
The ERZ-LNA-4720-5140-15-3.5 is a V band low noise amplifier providing a gain of 15 dB and a noise figure below 3.5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 47.20-50.00
- Output Power (dBm): 1.5
- Small Signal Gain (dB): 15
- Noise Figure (dB): 3.5
- Bias: 12 ±1 VDC
- Package Dimensions: 40x30x32.5 mm
- Connectors: WR19 (IN/OUT)
Specifications
| Frequency Start (GHz): | 47.20 |
| Frequency Stop (GHz): | 50.00 |
| Output Power (dBm): | 1.5 |
| Gain (dB): | 15.00 |
| Gain flatness (dB): | ±1 |
| Noise Figure (dB): | 3.5 |
| VSWR IN: | 3.2:1 |
| VSWR OUT: | 2.5:1 |
| Power supply (V): | 12 ±1 |
| Current (mA): | 79 |
| Power consumption (W): | 0.085 |
| Temperature (operation) (°C): | -55 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

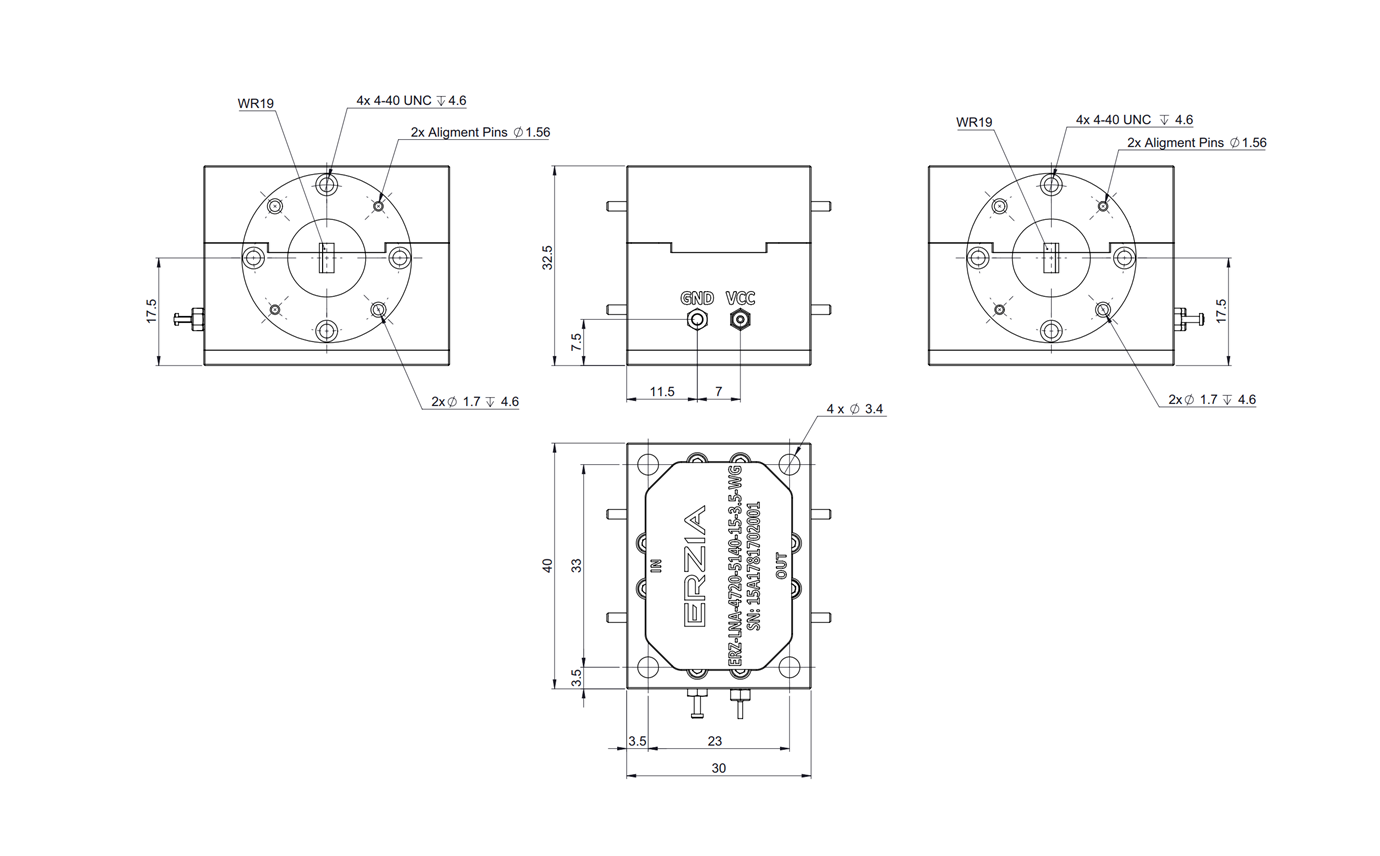

Outline Drawing
Ordering Information
