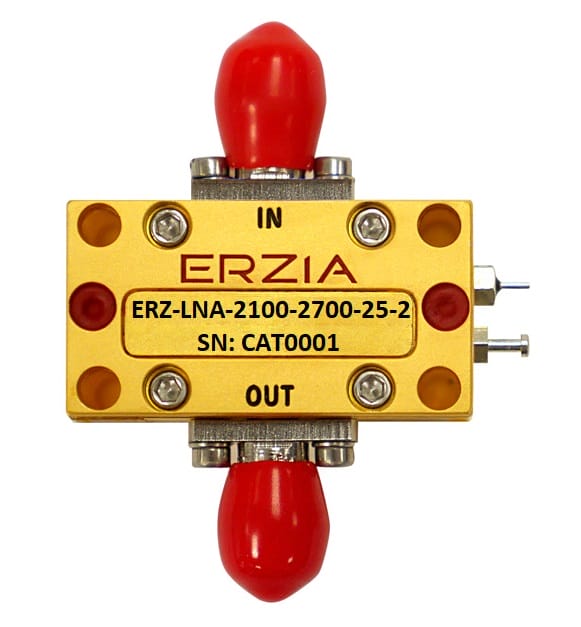

ERZ-LNA-2100-2700-25-2 K Band LNA

Login to see price Get a quote

K Band Low Noise Amplifier

Description

The ERZ-LNA-2100-2700-25-2 is a Low Noise Amplifier providing a gain of 25 dB with a noise figure of 2 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-2100-2700-25-2

Key Features

  • Frequency Range (GHz): 21.00-27.00
  • Output Power (dBm): 15
  • Small Signal Gain (dB): 25
  • Noise Figure (dB): 2.5
  • Bias: 12 ±3 VDC
  • Package Dimensions: 16x30x17,5 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 21.00
Frequency Stop (GHz): 27.00
Output Power (dBm): 15
Gain (dB): 25.00
Gain flatness (dB): ±2
Noise Figure (dB): 2.5
VSWR IN: 1.5:1
VSWR OUT: 1.8:1
Power supply (V): 12 ±3
Current (mA): 41.6
Power consumption (W): 0.5
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing

Ordering Information
