ERZ-LNA-1800-4000-45-8

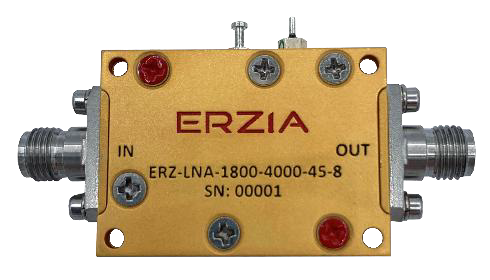

ERZ-LNA-1800-4000-45-8-1-2

Login to see price Get a quote

Wideband Low Noise Amplifier

Description

The ERZ-LNA-1800-4000-45-8 is a Low Noise Amplifier providing a gain of 37 dB with a noise figure of 6 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-1800-4000-45-8-1

Key Features

  • Frequency Range (GHz): 18.00-40.00
  • Output Power (dBm): 18
  • Small Signal Gain (dB): 38
  • Noise Figure (dB): 5
  • Bias: 12±3
  • Package Dimensions: 32x23x10
  • Connectors: 2.92 mm (F)

Specifications

Frequency Start (GHz): 18.00
Frequency Stop (GHz): 40.00
Output Power (dBm): 18
Gain (dB): 38.00
Gain flatness (dB): ±1.5
Noise Figure (dB): 5
VSWR IN: 1.5:1
VSWR OUT: 1.5:1
Power supply (V): 12 ±3
Current (mA): 166.66
Power consumption (W): 2
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

Outline Drawing

Ordering Information
