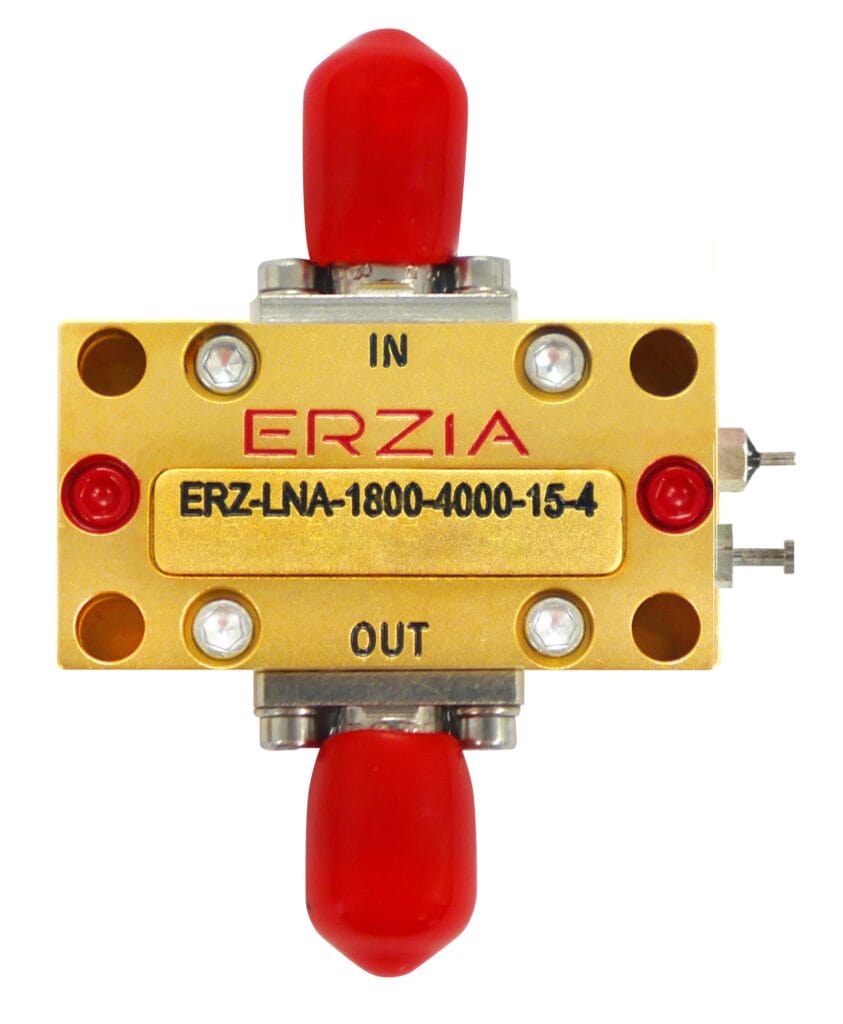

ERZ-LNA-1800-4000-15-4
Wideband Low Noise Amplifier
Description
The ERZ-LNA-1800-4000-15 is a wideband Low Noise Amplifier providing low noise figure throughout the entire K and Ka bands and a gain of 15 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 18.00-40.00
- Output Power (dBm): 16
- Small Signal Gain (dB): 15
- Noise Figure (dB): 5
- Bias: Power supply: 12±3 V
- Package Dimensions: 16x30x17,5 mm
- Connectors: 2.92 Female
Specifications
| Frequency Start (GHz): | 18.00 |
| Frequency Stop (GHz): | 40.00 |
| Output Power (dBm): | 16 |
| Gain (dB): | 15.00 |
| Gain flatness (dB): | ±1 |
| Noise Figure (dB): | 5 |
| VSWR IN: | 1.8:1 |
| VSWR OUT: | 1.8:1 |
| Power supply (V): | 12 ±3 |
| Current (mA): | 125 |
| Power consumption (W): | 1.5 |
| Temperature (operation) (°C): | -45 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

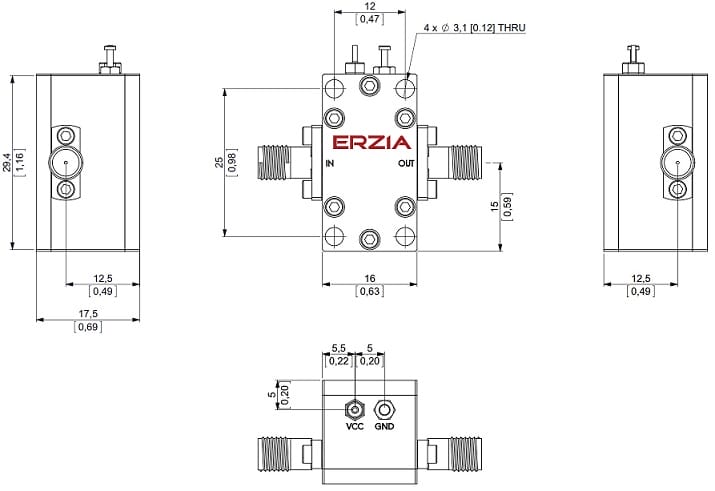

Outline Drawing
Ordering Information
