ERZ-LNA-1800-3200-21-3 Wideband LNA

Login to see price Get a quote

Wideband Low Noise Amplifier

Description

The ERZ-LNA-1800-3200-21-3 is a Low Noise Amplifier that provides a Noise Figure of 3 dB with a Gain of 21 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-1800-3200-21-3_1

Key Features

  • Frequency Range (GHz): 18.00-32.00
  • Output Power (dBm): 11
  • Small Signal Gain (dB): 21
  • Noise Figure (dB): 2.7
  • Bias: Power supply: 6 V
  • Package Dimensions: 16x30x17,5 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 18.00
Frequency Stop (GHz): 32.00
Output Power (dBm): 11
Gain (dB): 21.00
Gain flatness (dB): ±1,5
Noise Figure (dB): 2.7
VSWR IN: 2.5:1
VSWR OUT: 2.5:1
Power supply (V): 6 ±1
Current (mA): 33
Power consumption (W): 0.4
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

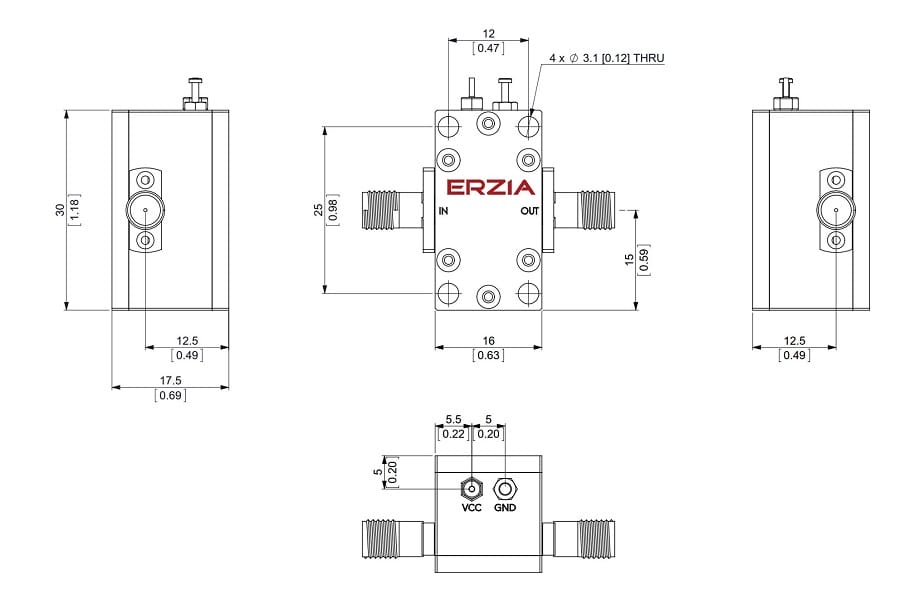

Outline Drawing

Ordering Information
