ERZ-LNA-1700-2600-35-1.5

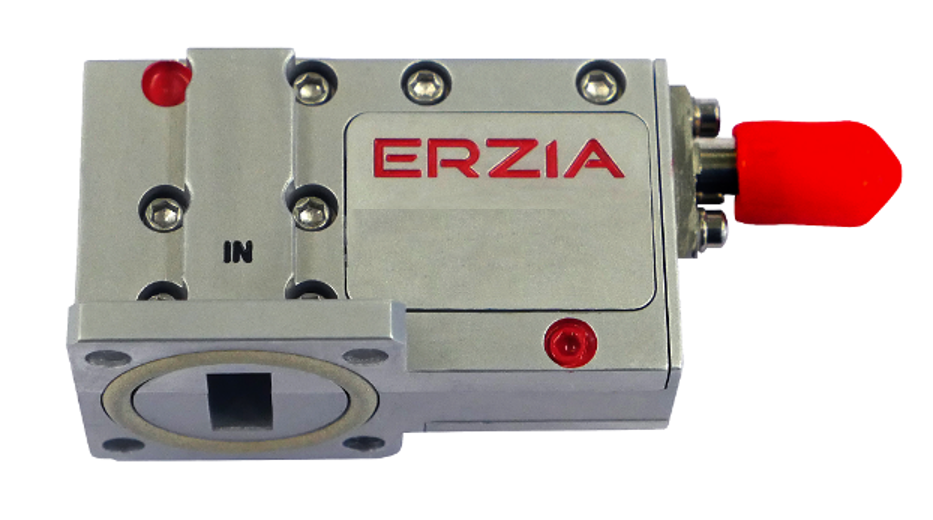

ERZ-LNA-1700-2600-35-1.5_photo

Login to see price Get a quote

Ka Band Low Noise Amplifier

Description

Download

PDF IconERZ-LNA-1700-2600-35-1.5

Key Features

  • Frequency Range (GHz): 17-26
  • Output Power (dBm): 9
  • Small Signal Gain (dB): 35
  • Noise Figure (dB): 1.3
  • Output Saturation Power (dBm): 9
  • Connectors: WR42 IN / SMA Female OUT

Specifications

Frequency Start (GHz): 17
Frequency Stop (GHz): 26
Output Power (dBm): 9
Gain (dB): 35
Gain flatness (dB): 2
Noise Figure (dB): 1.3
VSWR IN: 1.5:1
VSWR OUT: 1.3:1
Power supply (V): 12
Current (mA): 60
Power consumption (W): 0.7
Max. Input DC (no damage) (V): 15
Max. RF input power (dBm): 13

Applications

Industrial / Laboratory / Satcom/ Telecom / Space / Aerospace

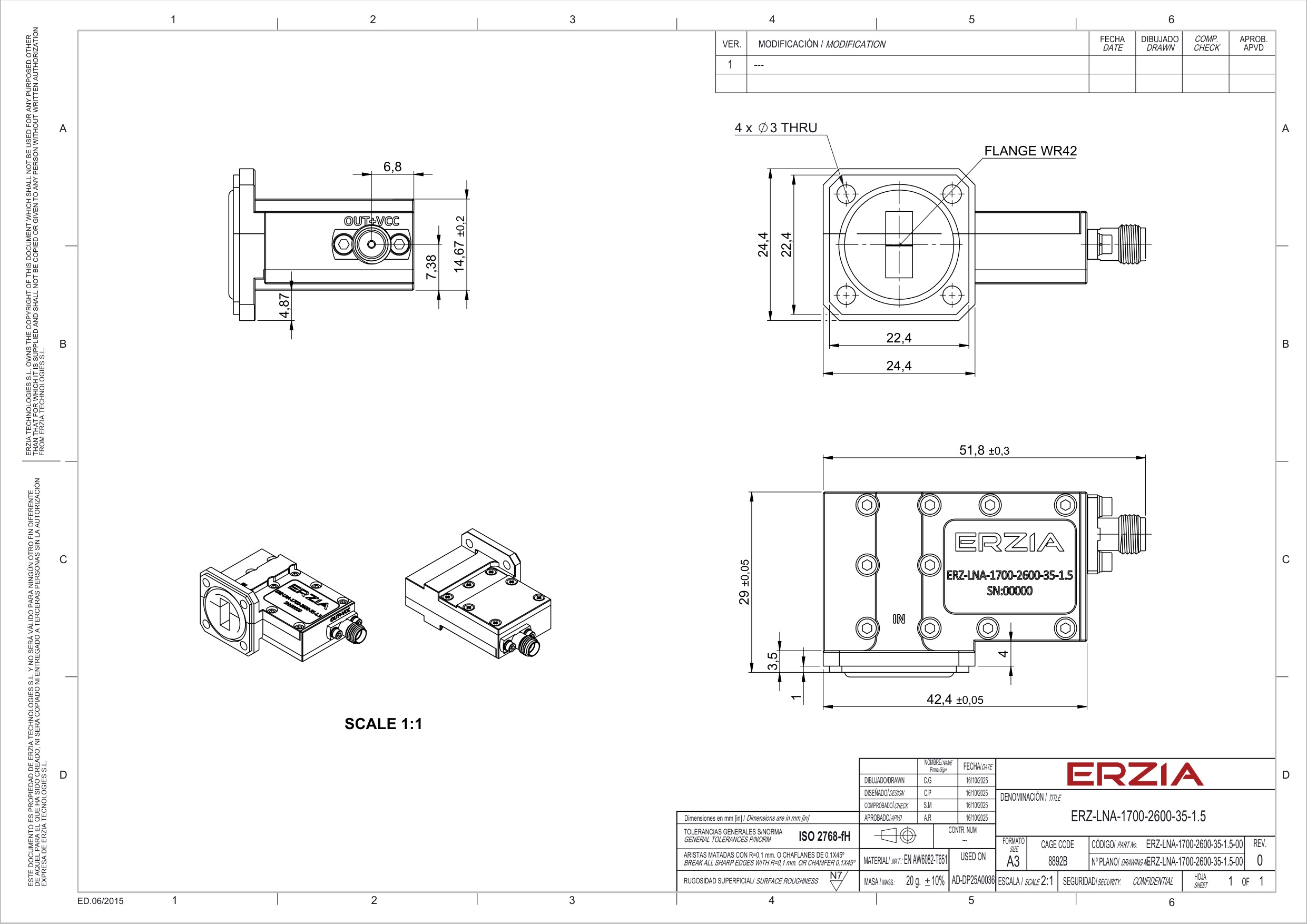

Outline Drawing
