Wideband Low Noise Amplifier | 12.5–30 GHz | NF 2.5 dB | 25 dB Gain

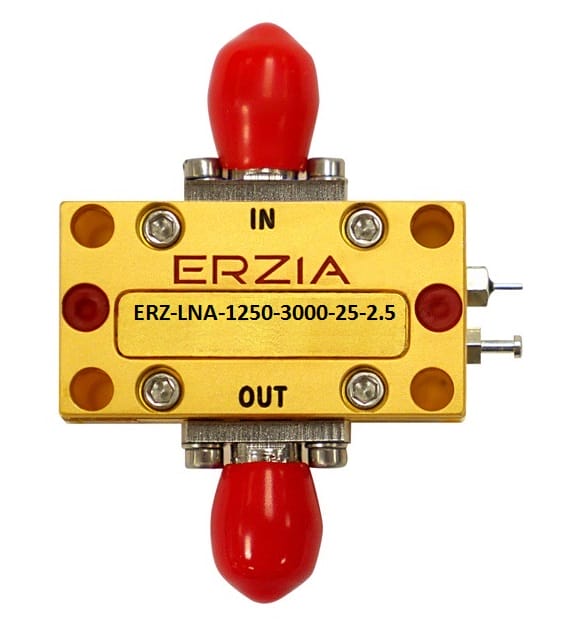

ERZ-LNA-1250-3000-25-2.5 Wideband LNA

Login to see price Get a quote

Description

The ERZ-LNA-1250-3000-25-2.5 is a Low Noise Amplifier that provides a Noise Figure of 2.5 dB with a gain of 25 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-1250-3000-25-2.5_0

Key Features

  • Frequency Range (GHz): 12.5-30
  • Output Power (dBm): 15
  • Small Signal Gain (dB): 25
  • Noise Figure (dB): 2.5
  • Bias: Power supply: 12 V
  • Package Dimensions: 16x30x17,5 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 12.5
Frequency Stop (GHz): 30
Output Power (dBm): 15
Gain (dB): 25
Gain flatness (dB): ±4
Noise Figure (dB): 2.5
VSWR IN: 2.5:1
VSWR OUT: 2.2:1
Power supply (V): 12 ±4
Current (mA): 66
Power consumption (W): 0.8
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

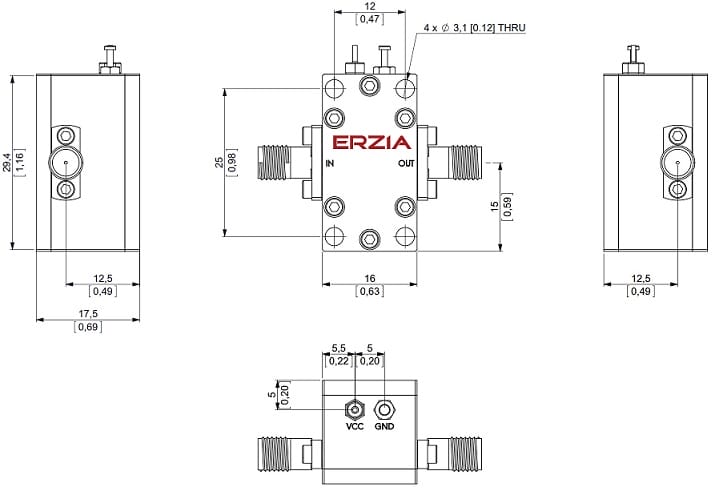

Outline Drawing

Ordering Information
