ERZ-LNA-1000-2700-30-4 Wideband LNA

Login to see price Get a quote

Wideband Low Noise Amplifier

Description

The ERZ-LNA-1000-2700-30-4 is a Low Noise Amplifier being able to provide low noise figure within a wide frequency range and a gain of 30 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-1000-2700-30-4_0

Key Features

  • Frequency Range (GHz): 10.00-27.00
  • Output Power (dBm): 22
  • Small Signal Gain (dB): 30
  • Noise Figure (dB): 4
  • Bias: 12±3 VDC
  • Package Dimensions: 30x50x17,5 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 10.00
Frequency Stop (GHz): 27.00
Output Power (dBm): 22
Gain (dB): 30.00
Gain flatness (dB): ±1.5
Noise Figure (dB): 4
VSWR IN: 1.5:1
VSWR OUT: 1.8:1
Power supply (V): 12 ±4
Current (mA): 225
Power consumption (W): 2.7
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

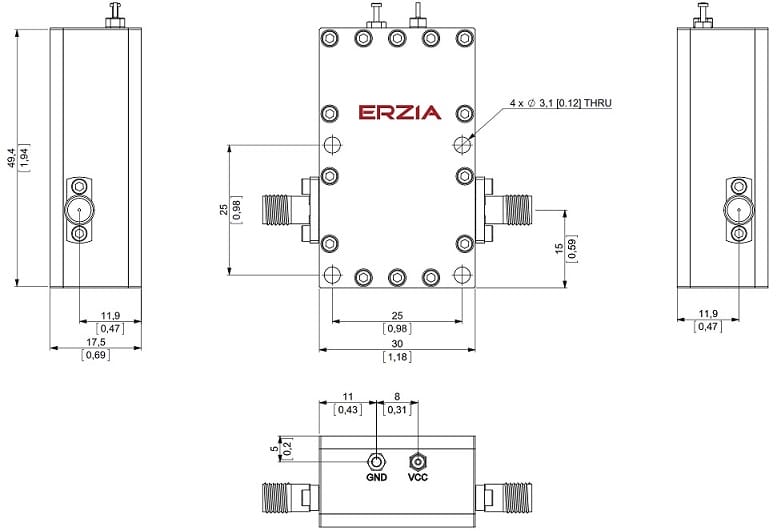

Outline Drawing

Ordering Information
