ERZ-LNA-0840-1020-25-1.5

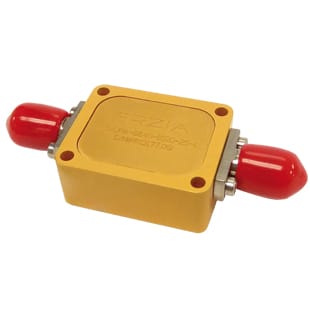

ERZ-LNA-0840-1020-25-1.5 X Band LNA

Login to see price Get a quote

X Band Low Noise Amplifier

Description

The ERZ-LNA-0840-1020-25-1.5 is a Low Noise Amplifier providing a gain greater than 25 dB with excellent gain flatness behavior and an output power above 10 dBm. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0840-1020-25-1.5_0

Key Features

  • Frequency Range (GHz): 8.40-10.20
  • Output Power (dBm): 11
  • Small Signal Gain (dB): 25
  • Noise Figure (dB): 1.5
  • Bias: Power supply: 5 V
  • Package Dimensions: 25x20x10 mm

Specifications

Frequency Start (GHz): 8.40
Frequency Stop (GHz): 10.20
Output Power (dBm): 11
Gain (dB): 25.00
Gain flatness (dB): ±0,5
Noise Figure (dB): 1.5
VSWR IN: 3.0:1
VSWR OUT: 1.5:1
Power supply (V): 5 ±0,5
Current (mA): 140
Power consumption (W): 0.7
Temperature (operation) (°C): -35 to 60
Temperature (storage) (°C): -45 to 85

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

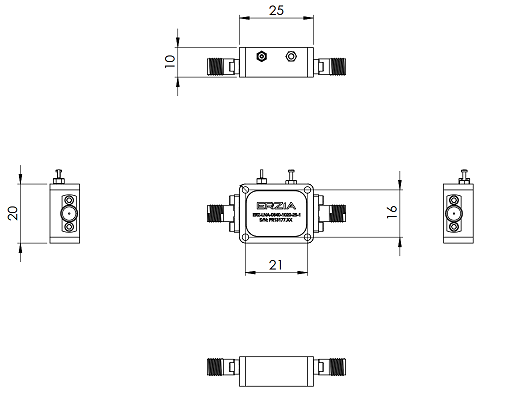

Outline Drawing

Ordering Information
