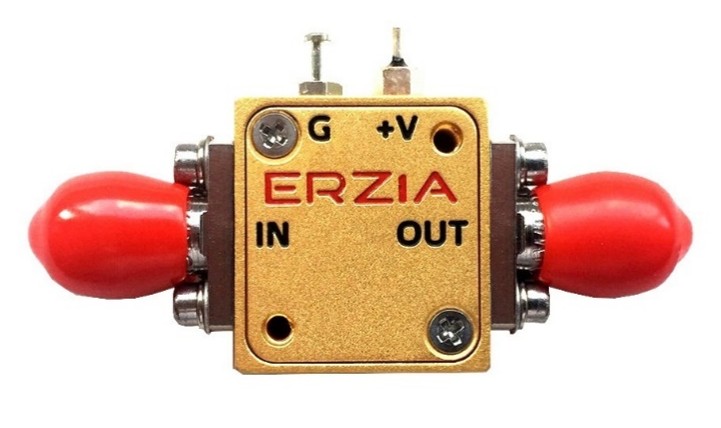

ERZ-LNA-0600-1200-25-1


Login to see price Get a quote

Wideband Low Noise Amplifier

Description

The ERZ-LNA-0600-1200-25-1 is a Low Noise Amplifier providing a gain of 25 dB with a noise figure below 1 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0600-1200-25-1

Key Features

  • Frequency Range (GHz): 6-12
  • Output Power (dBm): 14
  • Small Signal Gain (dB): 25
  • Noise Figure (dB): 1
  • Output Saturation Power (dBm): 14
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 6
Frequency Stop (GHz): 12
Output Power (dBm): 14
Gain (dB): 25
Gain flatness (dB): 1
Noise Figure (dB): 1
VSWR IN: 1.4
VSWR OUT: 1.4
Power supply (V): 12
Current (mA): 25
Power consumption (W): 0.3
Max. Input DC (no damage) (V): 15
Max. RF input power (dBm): 18

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace
