ERZ-LNA-0570-0590-50-2

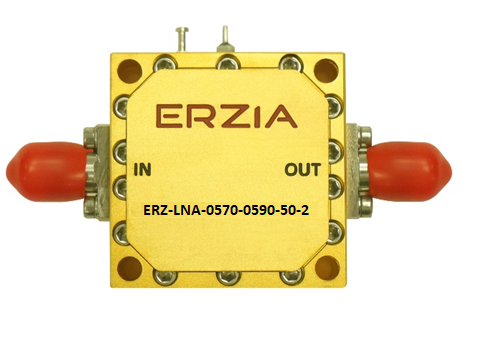

ERZ-LNA-0570-0590-50-2 C Band LNA

Login to see price Get a quote

C Band Low Noise Amplifier

Description

The ERZ-LNA-0570-0590-50-2 is a Low Noise Amplifier providing a gain of 50 dB with a noise figure of 2 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0570-0590-50-2_0

Key Features

  • Frequency Range (GHz): 5.70-5.90
  • Output Power (dBm): 15
  • Small Signal Gain (dB): 50
  • Noise Figure (dB): 2
  • Bias: 12±3 VDC
  • Package Dimensions: 30x50x17.5 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 5.70
Frequency Stop (GHz): 5.90
Output Power (dBm): 15
Gain (dB): 50.00
Gain flatness (dB): ±0.1
Noise Figure (dB): 2
VSWR IN: 1.5:1
VSWR OUT: 1.5:1
Power supply (V): 12±3
Current (mA): 58.3
Power consumption (W): 0.7
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

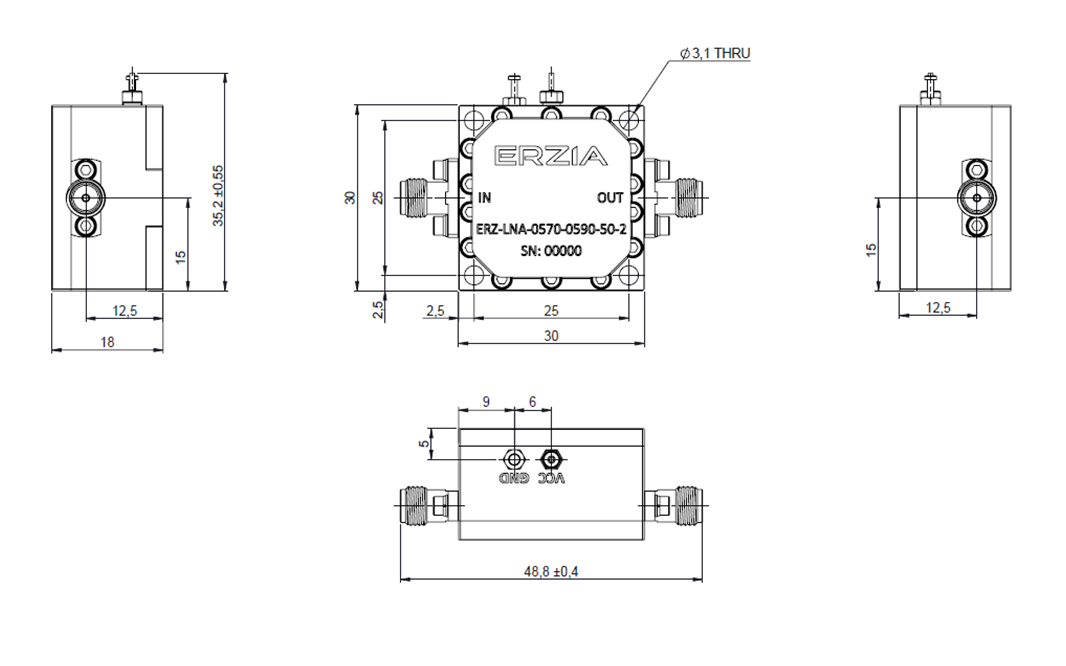

Outline Drawing
