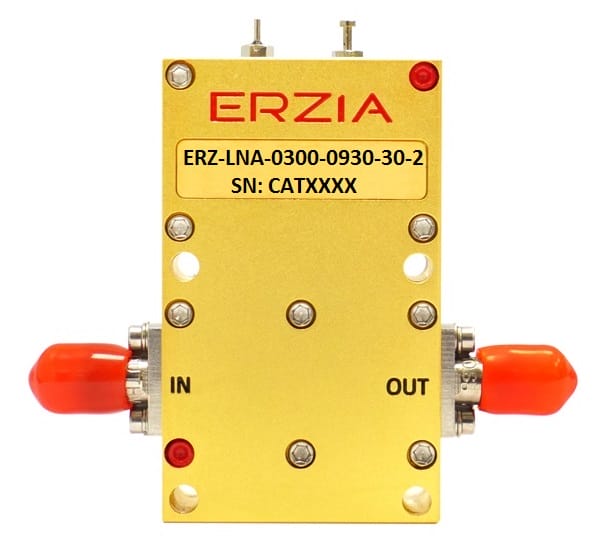

ERZ-LNA-0300-0930-30-2 C Band LNA

Login to see price Get a quote

C Band Low Noise Amplifier

Description

The ERZ-0300-0930-30-2 is a wideband Low Noise Amplifier providing a low noise figure within a wide frequency range and a gain of 30 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0300-0930-30-2_1

Key Features

  • Frequency Range (GHz): 3.00-9.30
  • Output Power (dBm): 19
  • Small Signal Gain (dB): 30
  • Noise Figure (dB): 2
  • Bias: Power supply: 15 V, DC Current: 74 mA
  • Package Dimensions: 30x50x17,5 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 3.00
Frequency Stop (GHz): 9.30
Output Power (dBm): 19
Gain (dB): 30.00
Gain flatness (dB): ±1
Noise Figure (dB): 2
VSWR IN: 1.8:1
VSWR OUT: 1.5:1
Power supply (V): 15
Current (mA): 74
Power consumption (W): 1.2
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

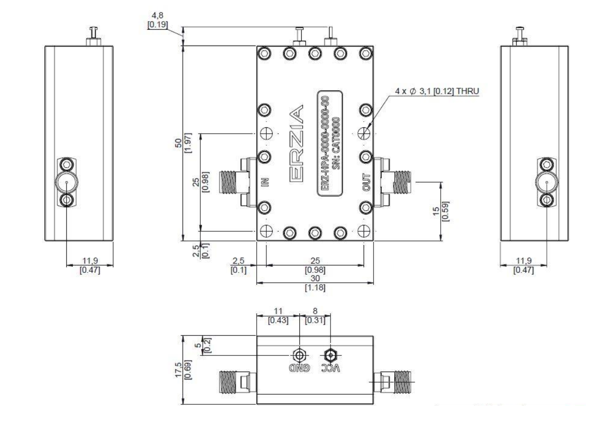

Outline Drawing
