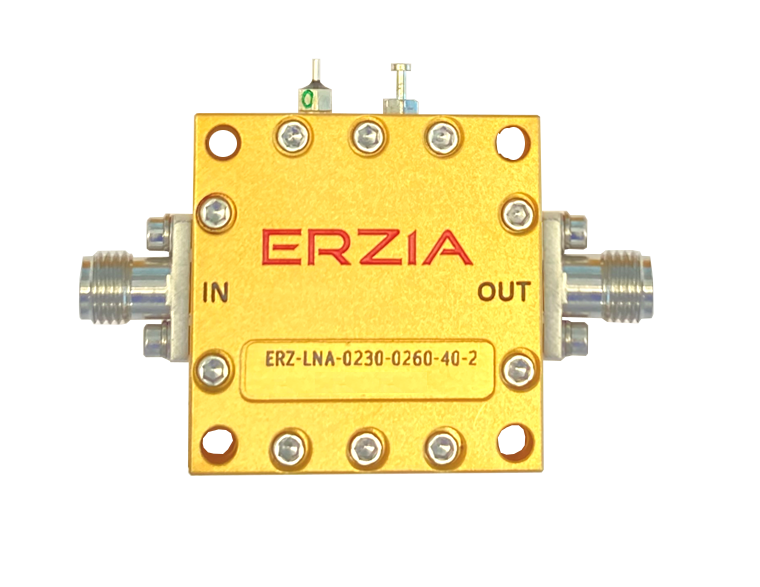

ERZ-LNA-0230-0260-40-2 S Band LNA

Login to see price Get a quote

S Band Low Noise Amplifier

Description

The ERZ-LNA-0230-0260-40-2.5 is a Low Noise Amplifier providing a gain of 40 dB with a noise figure of 2.5 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0230-0260-40-2_0

Key Features

  • Frequency Range (GHz): 2.30-2.60
  • Output Power (dBm): 19
  • Small Signal Gain (dB): 40
  • Noise Figure (dB): 2.5
  • Bias: 12±3 VDC
  • Package Dimensions: 30x30x17.5
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 2.30
Frequency Stop (GHz): 2.60
Output Power (dBm): 19
Gain (dB): 43.00
Gain flatness (dB): ±0.5
Noise Figure (dB): 2.5
VSWR IN: 1.5:1
VSWR OUT: 1.5:1
Power supply (V): 12±3
Current (mA): 58
Power consumption (W): 0.7
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

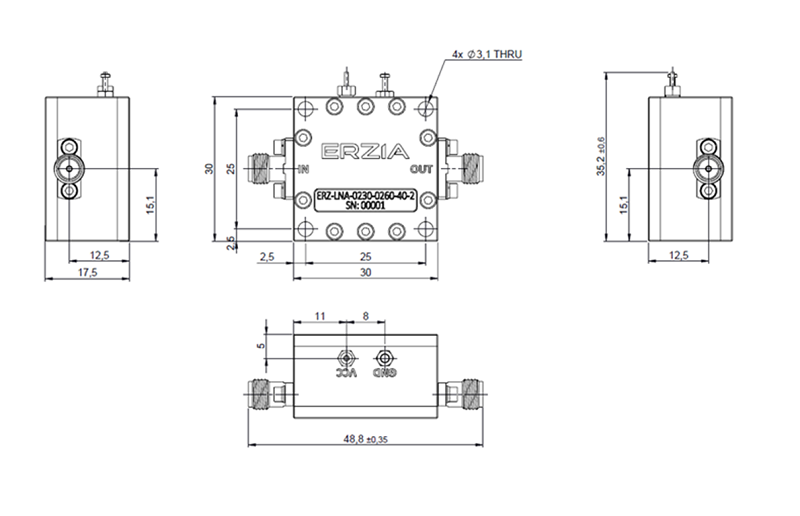

Outline Drawing

Ordering Information
