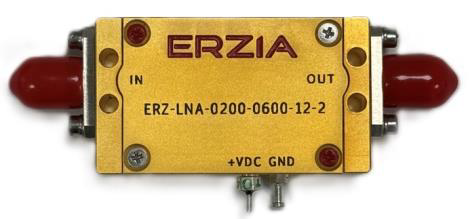

ERZ-LNA-0200-0600-12-2

ERZ-LNA-0200-0600-12-2_0-2

Login to see price Get a quote

C Band Low Noise Amplifier

Description

The ERZ-LNA-0200-0600-12-2 is a Low Noise Amplifier providing a gain of 12 dB with a noise figure of 2.5 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0200-0600-12-2_0

Key Features

  • Frequency Range (GHz): 2.00-6.00
  • Output Power (dBm): 14
  • Small Signal Gain (dB): 12
  • Noise Figure (dB): 2.5
  • Bias: 12 ± 3

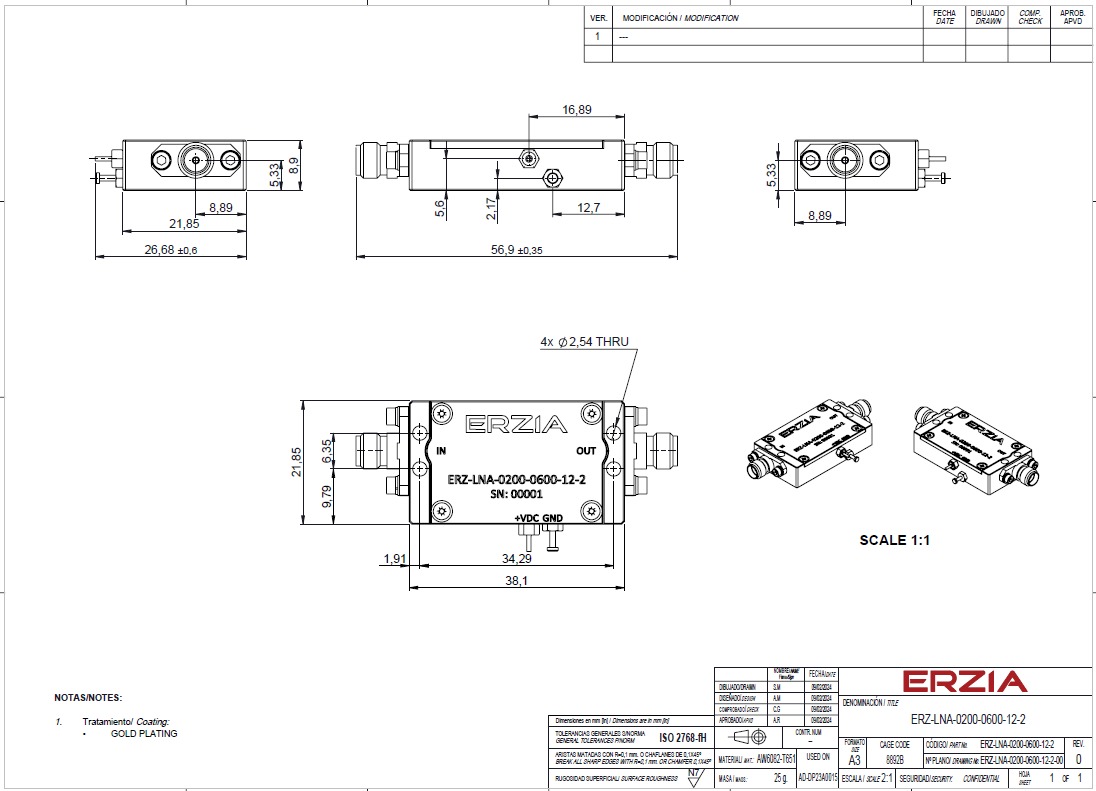

  • Package Dimensions: 38.1 x 21.85 x 8.9
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 2.00
Frequency Stop (GHz): 6.00
Output Power (dBm): 14
Gain (dB): 12.00
Gain flatness (dB): ±1
Noise Figure (dB): 2.5
VSWR IN: 2.0:1
VSWR OUT: 2.0:1
Power supply (V): 12 ± 3
Current (mA): 100
Power consumption (W): 1.2
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Ordering Information
